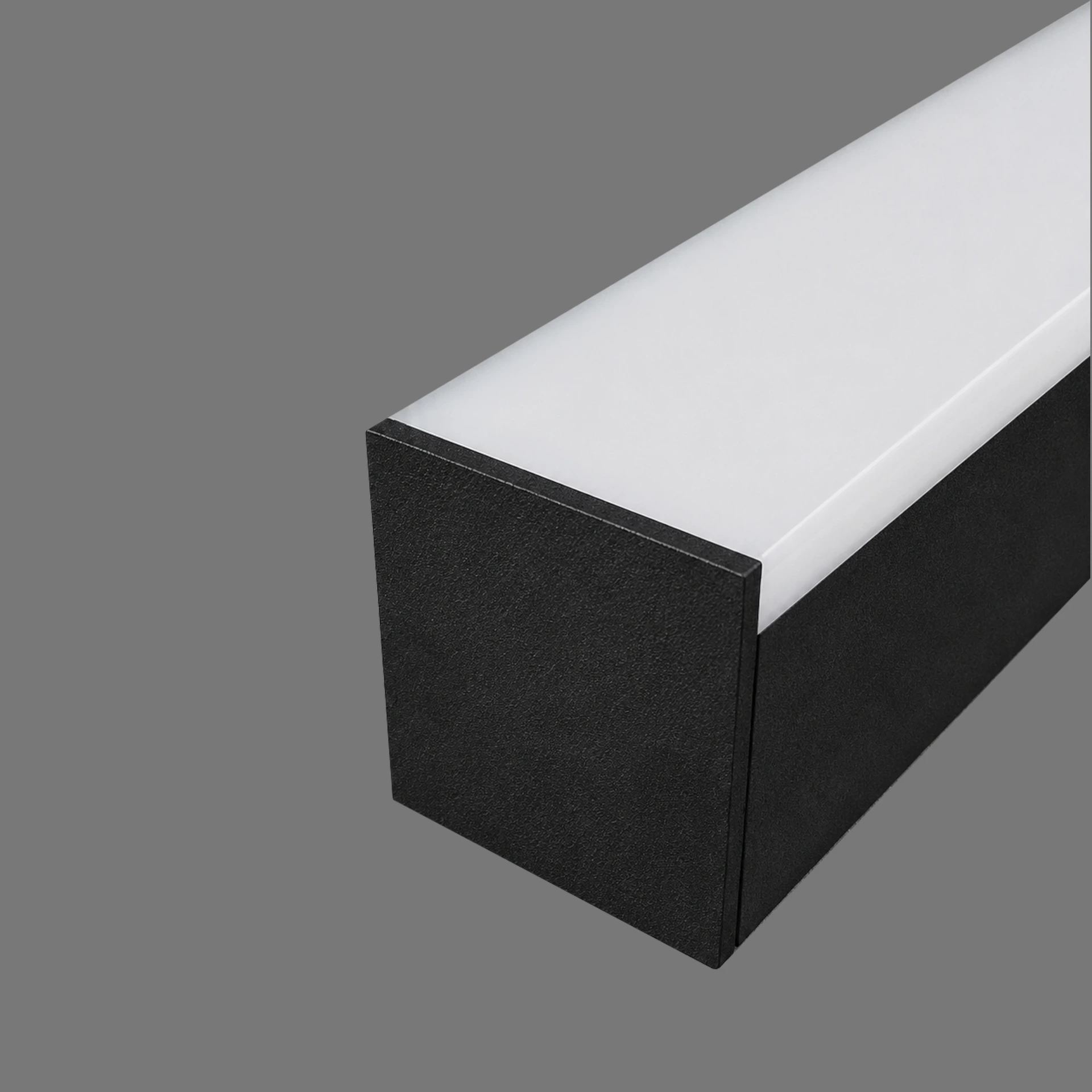

LINJA HIGH IP20 24VDC 9,6W

Download datasheet

SPECIFICATIONS

SMD LED(S) 180 per meter
MAX. POWER 9,6 Watt 0,4Amp per meter
BEAM ANGLE 120°
CRI 90+(opal) 75+(Black)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,6
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070030
188,90 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
047961112209 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 2200 450 -
047961122209 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2200 450 -
047961112709 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 2700 450 -
047961122709 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2700 450 -
047961113009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 3000 515 -
047961123009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 3000 515 -
047961114009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 4000 580 -
047961124009 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 4000 580 -
047961112210 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 2200 360 -
047961122210 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 2200 360 -
047961112710 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 2700 360 -
047961122710 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 2700 360 -
047961113010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 3000 412 -
047961123010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 3000 412 -
047961114010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 4000 464 -
047961124010 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 4000 464 -
047961112206 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 2200 450 -
047961122206 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2200 450 -
047961112706 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 2700 450 -
047961122706 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2700 450 -
047961113006 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 3000 515 -
047961123006 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 3000 515 -
047961114006 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 4000 580 -
047961124006 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 4000 580 -
047961112207 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 2200 360 -
047961122207 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 2200 360 -
047961112707 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 2700 360 -
047961122707 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 2700 360 -
047961113007 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 3000 412 -
047961123007 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 3000 412 -
047961114007 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 4000 464 -
047961124007 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 4000 464 -
047961112228 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2200 450 -
047961122228 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2200 360 -
047961112728 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2700 450 -
047961122728 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2700 450 -
047961113028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 3000 412 -
047961123028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 3000 515 -
047961114028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 4000 580 -
047961124028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 4000 580 -
047961112229 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2200 360 -
047961122229 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 2200 360 -
047961112729 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2700 360 -
047961122729 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 2700 360 -
047961113029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 3000 412 -
047961123029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 3000 412 -
047961114029 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 4000 464 -
047961124029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 4000 464 -
047961112212 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 2200 450 -
047961122212 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2200 450 -
047961112712 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 2700 450 -
047961122712 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2700 450 -
047961113012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 3000 515 -
047961123012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 3000 515 -
047961114012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 4000 580 -
047961124012 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 4000 580 -
047961112213 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 2200 360 -
047961122213 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 2200 360 -
047961112713 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 2700 360 -
047961122713 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 2700 360 -
047961113013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 3000 412 -
047961123013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 3000 412 -
047961114013 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 4000 464 -
047961124013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 4000 464 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
LUMEN OUTPUT 2200 or 2700 or 3000 or 4000
TO MOUNT CLIPS or MAGNET
DIFFUSOR PC HIGH OPAL or PC HIGH BLACK
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
WATT 9,6
