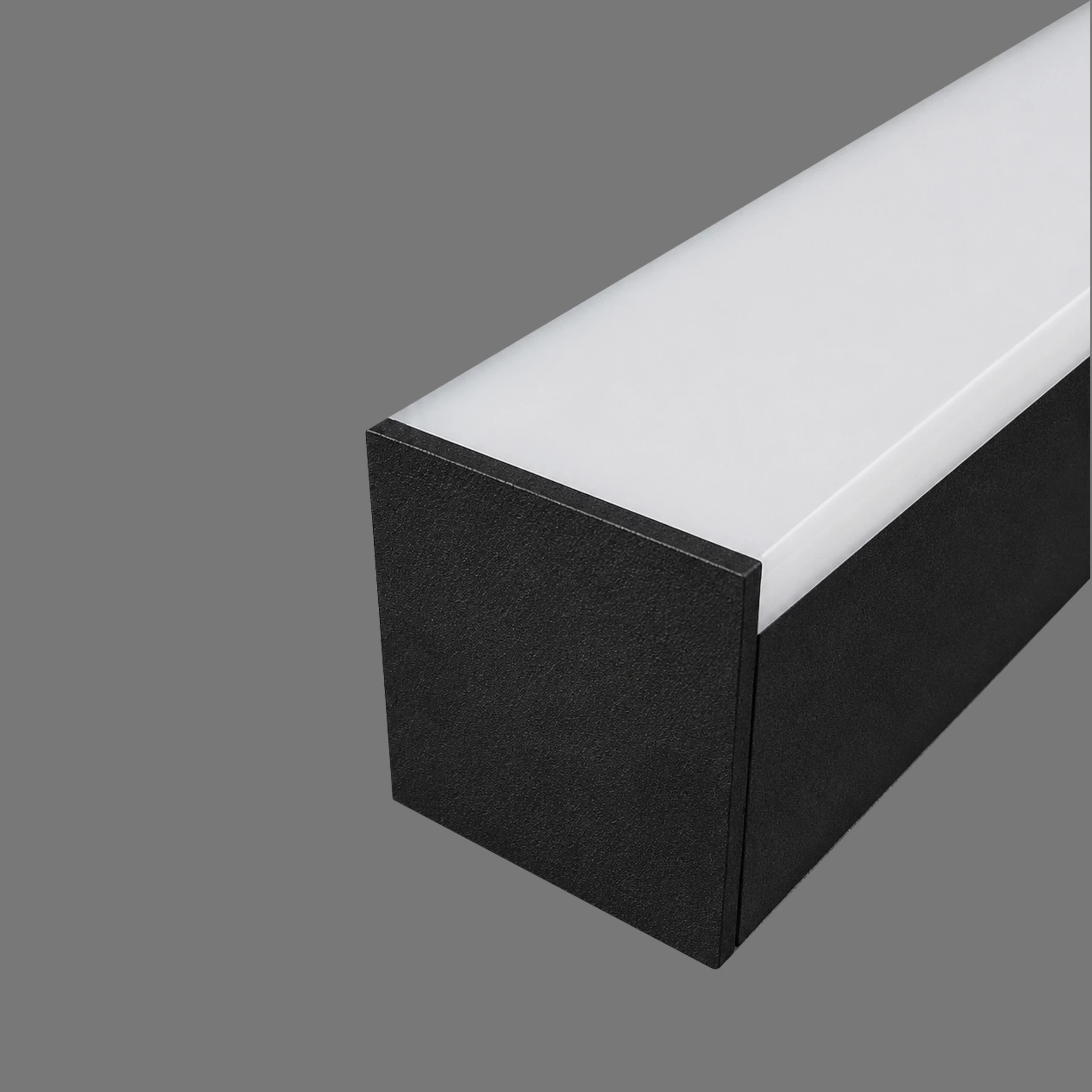

LINJA HIGH IP20 24VDC 28,8W

Download datasheet

SPECIFICATIONS

SMD LED(S) 360 per meter
MAX. POWER 28,8 Watt 1,2Amp per meter
BEAM ANGLE 120°
CRI 90+(opal) 75+(Black)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,6
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070030
208,90 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
047281112209 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 2200 1400 -
047281122209 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2200 1400 -
047281112709 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 2700 1400 -
047281122709 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2700 1400 -
047281113009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 3000 1600 -
047281123009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 3000 1600 -
047281114009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 4000 1800 -
047281124009 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 4000 1800 -
047281112210 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 2200 1120 -
047281122210 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 2200 1120 -
047281112710 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 2700 1120 -
047281122710 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 2700 1120 -
047281113010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 3000 1280 -
047281123010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 3000 1280 -
047281114010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 4000 1440 -
047281124010 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 4000 1440 -
047281112206 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 2200 1400 -
047281122206 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2200 1400 -
047281112706 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 2700 1400 -
047281122706 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2700 1400 -
047281113006 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 3000 1600 -
047281123006 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 3000 1600 -
047281114006 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 4000 1800 -
047281124006 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 4000 1800 -
047281112207 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 2200 1120 -
047281122207 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 2200 1120 -
047281112707 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 2700 1120 -
047281122707 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 2700 1120 -
047281113007 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 3000 1280 -
047281123007 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 3000 1280 -
047281114007 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 4000 1440 -
047281124007 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 4000 1440 -
047281112228 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2200 1400 -
047281122228 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2200 1400 -
047281112728 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2700 1400 -
047281122728 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2700 1400 -
047281113028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 3000 1600 -
047281123028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 3000 1600 -
047281114028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 4000 1800 -
047281124028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 4000 1800 -
047281112229 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2200 1120 -
047281122229 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 2200 1120 -
047281112729 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2700 1120 -
047281122729 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 2700 1120 -
047281113029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 3000 1280 -
047281123029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 3000 1280 -
047281114029 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 4000 1440 -
047281124029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 4000 1440 -
047281112212 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 2200 1400 -
047281122212 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2200 1400 -
047281112712 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 2700 1400 -
047281122712 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2700 1400 -
047281113012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 3000 1600 -
047281123012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 3000 1600 -
047281114012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 4000 1800 -
047281124012 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 4000 1800 -
047281112213 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 2200 1120 -
047281122213 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 2200 1120 -
047281112713 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 2700 1120 -
047281122713 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 2700 1120 -
047281113013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 3000 1280 -
047281123013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 3000 1280 -
047281114013 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 4000 1440 -
047281124013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 4000 1440 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
LUMEN OUTPUT 2200 or 2700 or 3000 or 4000
TO MOUNT CLIPS or MAGNET
DIFFUSOR PC HIGH OPAL or PC HIGH BLACK
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
WATT 28,8
