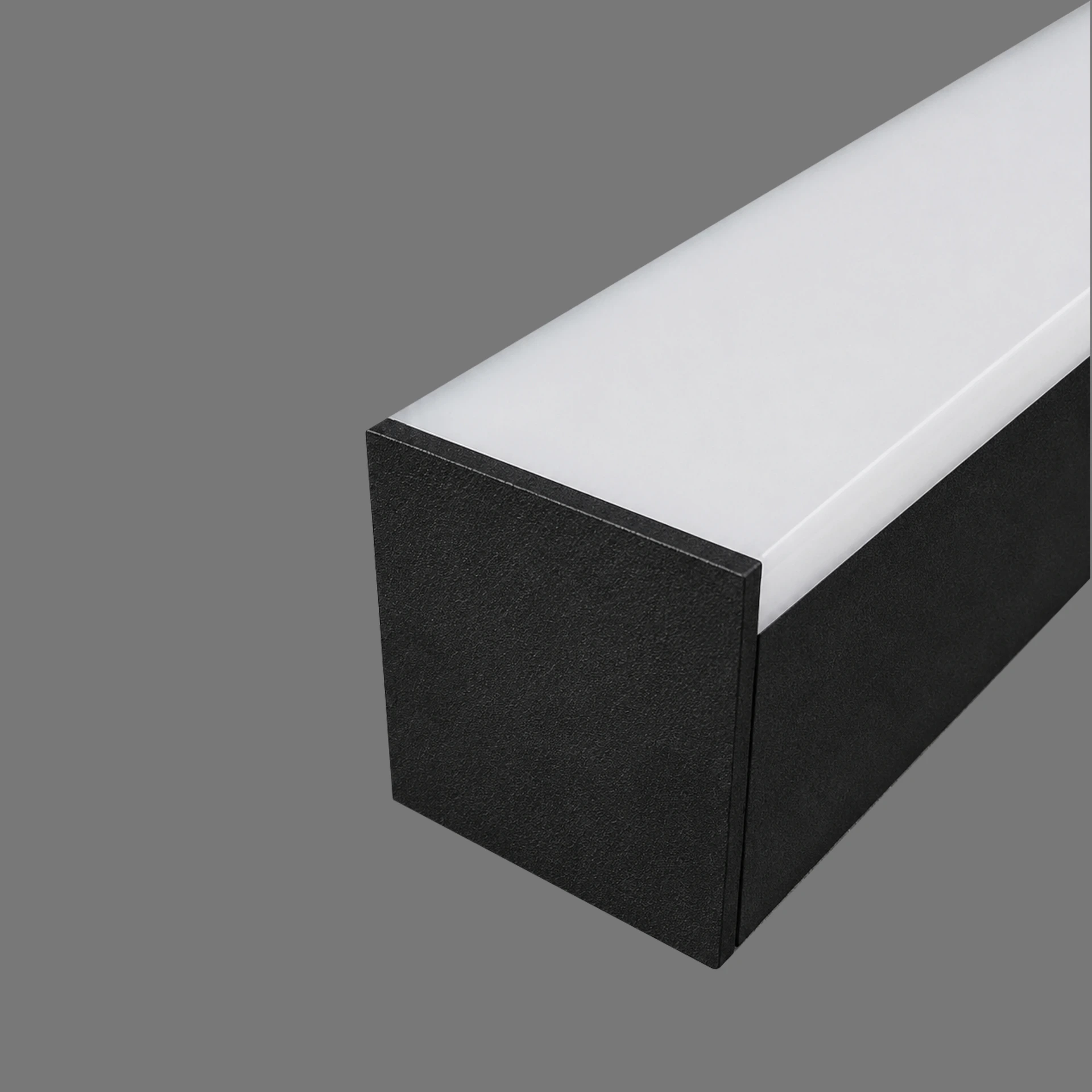

LINJA HIGH IP20 24VDC 14,4W

Download datasheet

SPECIFICATIONS

SMD LED(S) 180 per meter
MAX. POWER 14,4 Watt 0,6Amp per meter
BEAM ANGLE 120°
CRI 90+(opal) 75+(Black)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 0,7
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070036
185,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
047141112209 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 2200 700 -
047141122209 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2200 700 -
047141112709 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 2700 700 -
047141122709 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2700 700 -
047141113009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 3000 800 -
047141123009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 3000 800 -
047141114009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 4000 900 -
047141124009 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 4000 900 -
047141112210 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 2200 560 -
047141122210 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 2200 560 -
047141112710 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 2700 560 -
047141122710 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 2700 560 -
047141113010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 3000 640 -
047141123010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 3000 640 -
047141114010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 4000 720 -
047141124010 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 4000 720 -
047141112206 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 2200 700 -
047141122206 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2200 700 -
047141112706 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 2700 700 -
047141122706 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2700 700 -
047141113006 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 3000 800 -
047141123006 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 3000 800 -
047141114006 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 4000 900 -
047141124006 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 4000 900 -
047141112207 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 2200 560 -
047141122207 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 2200 560 -
047141112707 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 2700 560 -
047141122707 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 2700 560 -
047141113007 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 3000 640 -
047141123007 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 3000 640 -
047141114007 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 4000 720 -
047141124007 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 4000 720 -
047141112228 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2200 700 -
047141122228 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2200 700 -
047141112728 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2700 700 -
047141122728 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2700 700 -
047141113028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 3000 800 -
047141123028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 3000 800 -
047141114028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 4000 900 -
047141124028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 4000 900 -
047141112229 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2200 560 -
047141122229 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 2200 560 -
047141112729 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2700 560 -
047141122729 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 2700 560 -
047141113029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 3000 640 -
047141123029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 3000 640 -
047141114029 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 4000 720 -
047141124029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 4000 720 -
047141112212 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 2200 700 -
047141122212 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2200 700 -
047141112712 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 2700 700 -
047141122712 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2700 700 -
047141113012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 3000 800 -
047141123012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 3000 800 -
047141114012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 4000 900 -
047141124012 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 4000 900 -
047141112213 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 2200 560 -
047141122213 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 2200 560 -
047141112713 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 2700 560 -
047141122713 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 2700 560 -
047141113013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 3000 640 -
047141123013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 3000 640 -
047141114013 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 4000 720 -
047141124013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 4000 720 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
KELVIN 2200 or 2700 or 3000 or 4000
TO MOUNT CLIPS or MAGNET
DIFFUSOR PC HIGH OPAL or PC HIGH BLACK
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
WATT 14,4
