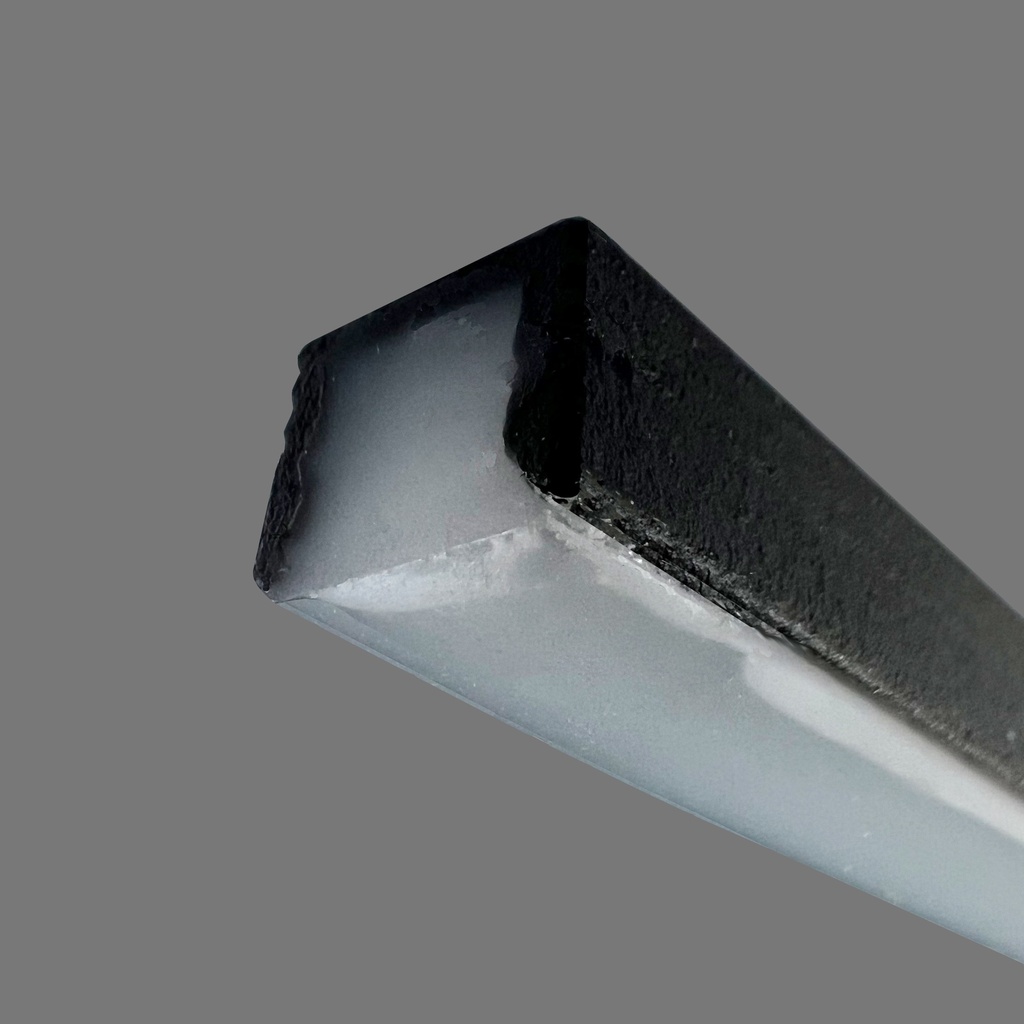

LEDPROFILE SKAB POTTED MONOCHROME IP67 12VDC

Download datasheet

SPECIFICATIONS

SMD LED(S) 180 per meter
MAX. POWER 14,5 Watt 1,21Amp per meter

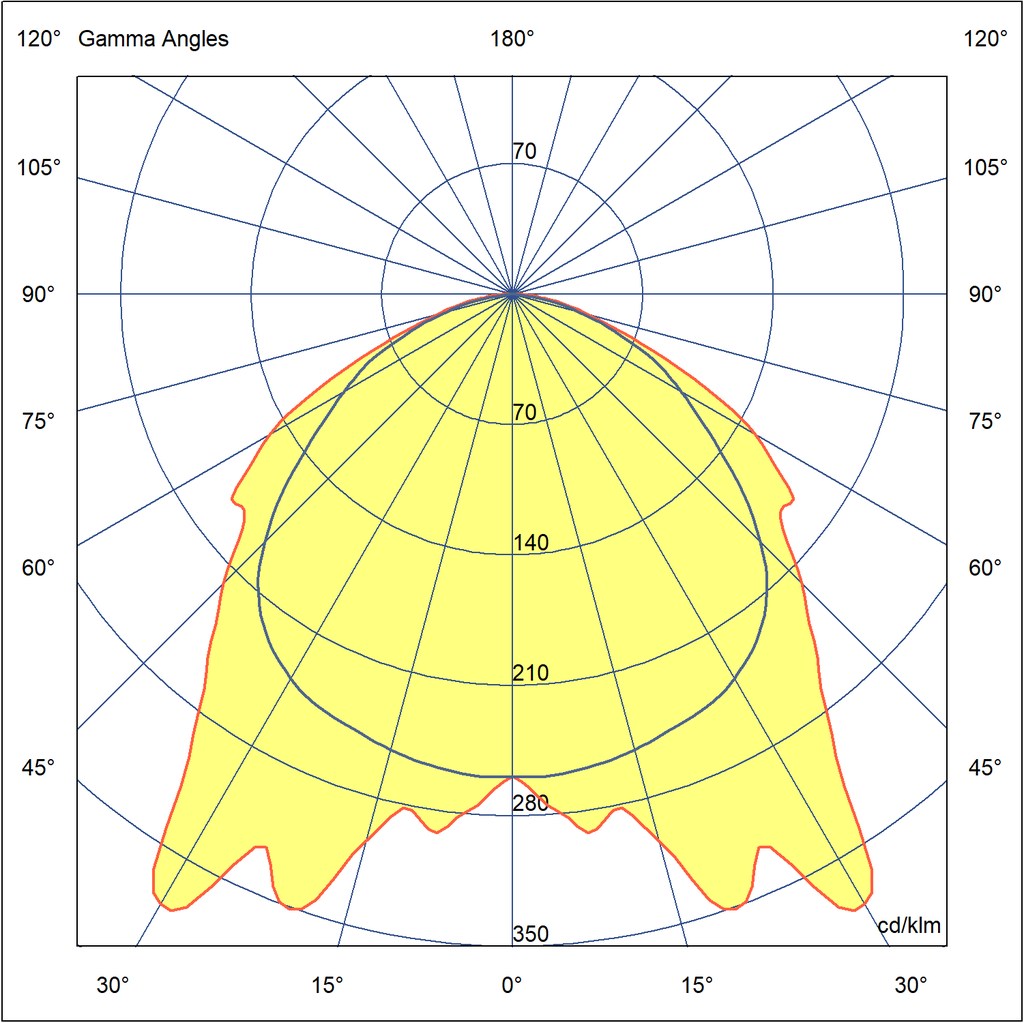

BEAM ANGLE 120°
CRI 90+
VOLTAGE 12 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Potting Material
MAX. LENGTH 50/3000 mm (2 profile/1 defuser)
WEIGHT (KG) 0,1
IP 67
ORDER PER METER
OPTIONS: Possible options see Accessories. Excludes power cable (order separately). Dimmable (cfr. Accessories)
139,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
003125111802 LEDPROFILE SKAB INT. WARM WHITE BLACK STRUC. 1800 600
003125112202 LEDPROFILE SKAB INT. WARM WHITE BLACK STRUC. 2200 675
003125112702 LEDPROFILE SKAB INT. WARM WHITE BLACK STRUC. 2700 750
003125113002 LEDPROFILE SKAB INT. WARM WHITE BLACK STRUC. 3000 825
003125114002 LEDPROFILE SKAB INT. NATURAL WHITE BLACK STRUC. 4000 915
003125111801 LEDPROFILE SKAB INT. WARM WHITE WHITE STRUC. 1800 600
003125112201 LEDPROFILE SKAB INT. WARM WHITE WHITE STRUC. 2200 675
003125112701 LEDPROFILE SKAB INT. WARM WHITE WHITE STRUC. 2700 750
003125113001 LEDPROFILE SKAB INT. WARM WHITE WHITE STRUC. 3000 825
003125114001 LEDPROFILE SKAB INT. NATURAL WHITE WHITE STRUC. 4000 915
003125111816 LEDPROFILE SKAB INT. WARM WHITE NATURAL ANODIZED 1800 600
003125112216 LEDPROFILE SKAB INT. WARM WHITE NATURAL ANODIZED 2200 675
003125112716 LEDPROFILE SKAB INT. WARM WHITE NATURAL ANODIZED 2700 750
003125113016 LEDPROFILE SKAB INT. WARM WHITE NATURAL ANODIZED 3000 825
003125114016 LEDPROFILE SKAB INT. NATURAL WHITE NATURAL ANODIZED 4000 915
COLOR WHITE STRUC. or BLACK STRUC. or NATURAL ANODIZED
LUMEN OUTPUT 1800 or 2200 or 2700 or 3000 or 4000
MOUNTING SURFACE or RECESSED
FIXATION CEILING or FLOOR or WALL
APPLICATION HOME EXTERIOR
