Product drawing

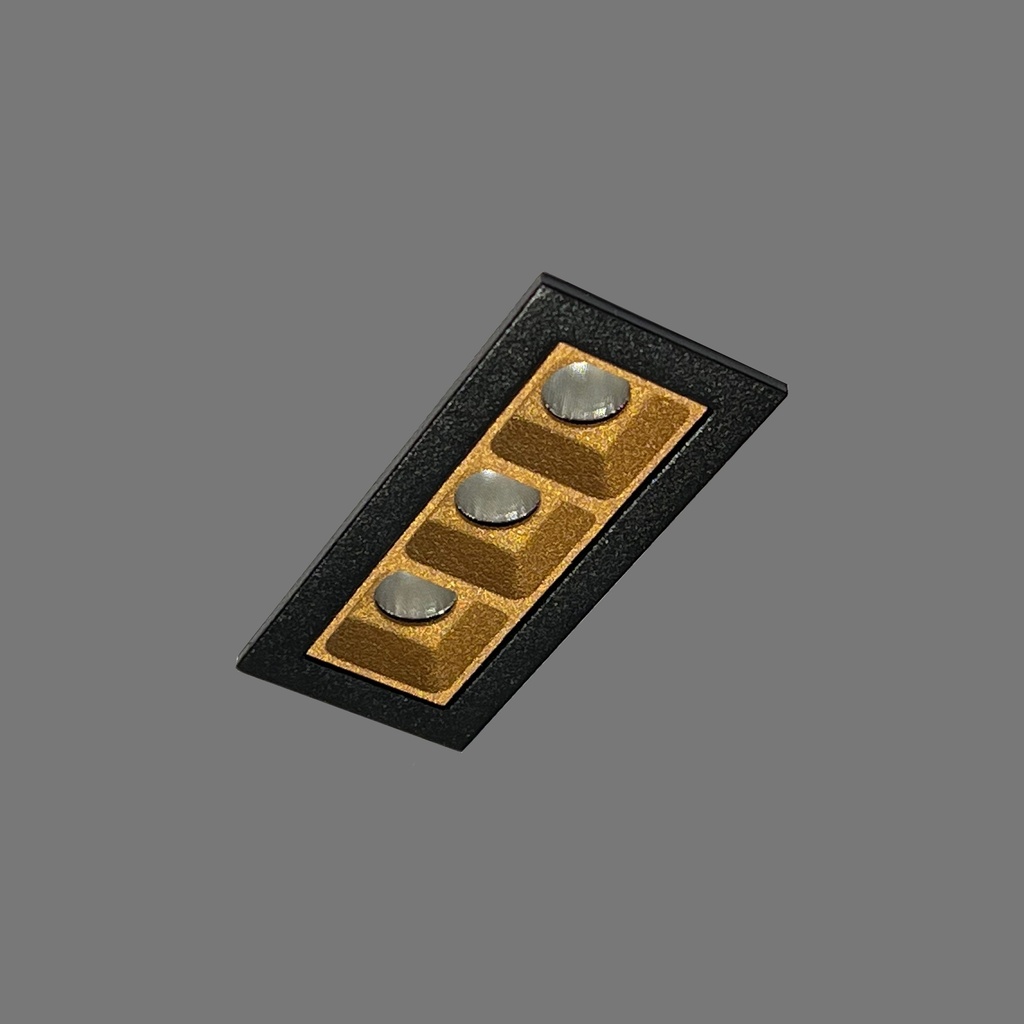

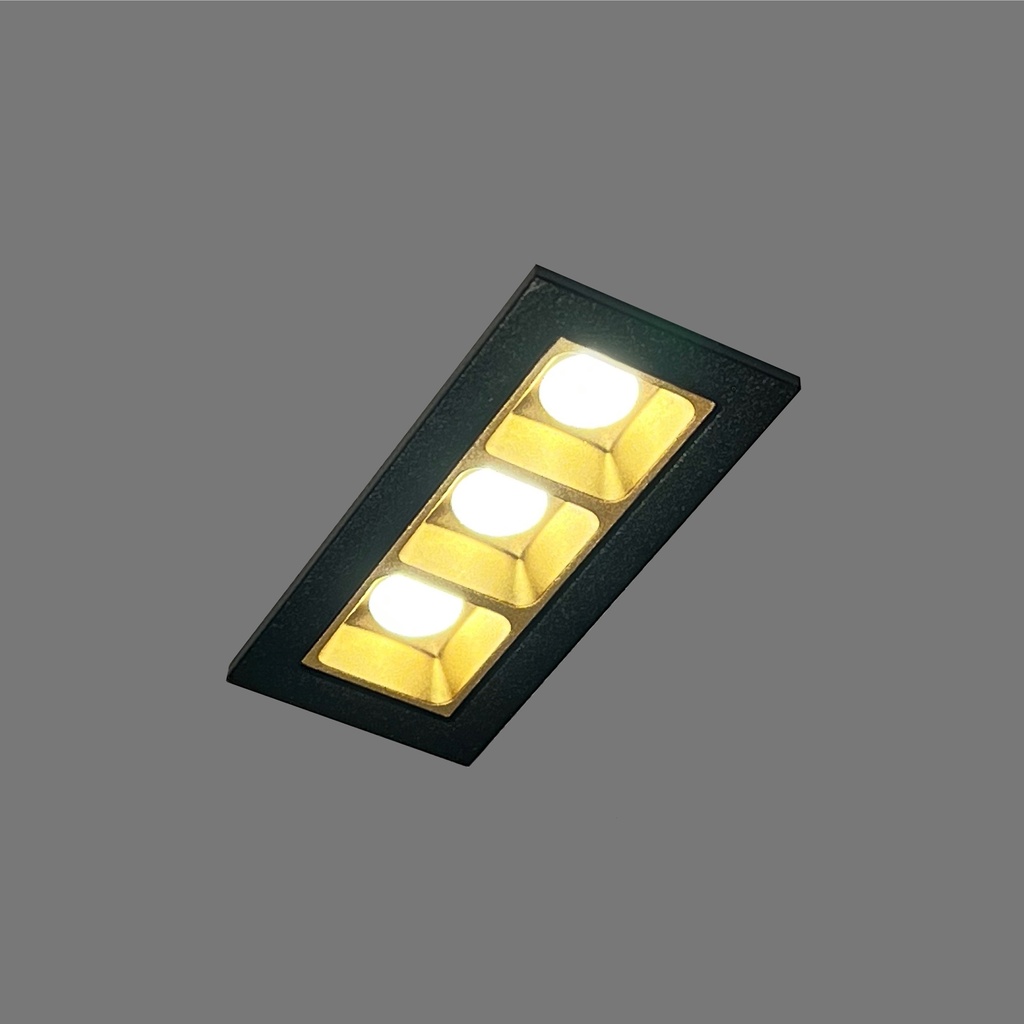

DOT 3

Download datasheet

SPECIFICATIONS

POWERLED(S)	3 x 2 Watt incl.
LENS	36°
CRI	90+
VOLTAGE	6W - 500mA
GEAR / DRIVER	Included L 110 x H 22 x W 40
POWER SUPPLY	500mA, 10-18V-, Max.9W
FORWARD VOLTAGE	25V
MATERIAL	Aluminium
MOUNTING DEPTH	40 mm
WEIGHT	0,180 KG
CUTOUT SHAPE / SIZE	Square 65mm x 27mm
IP	20

OPTIONS: All other Dimmable protocols are available on request.

109,00 €

MODELS

	Article n°	Description	Colour	Visor colour	Kelvin	Lumen	LDT
	034011212709	DOT 3 FIX INT. WARM WHITE	BLACK STRUC.	WHITE STRUC.
	034011213009	DOT 3 FIX INT. WARM WHITE	BLACK STRUC.	WHITE STRUC.
	034011212710	DOT 3 FIX INT. WARM WHITE	BLACK STRUC.	BLACK STRUC.
	034011213010	DOT 3 FIX INT. WARM WHITE	BLACK STRUC.	BLACK STRUC.
	034011212711	DOT 3 FIX INT. WARM WHITE	BLACK STRUC.	GOLD STRUC.
	034011213011	DOT 3 FIX INT. WARM WHITE	BLACK STRUC.	GOLD STRUC.

	Article n°	Description	Colour	Visor colour	Kelvin	Lumen	LDT
	034011212706	DOT 3 FIX INT. WARM WHITE	WHITE STRUC.	WHITE STRUC.
	034011213006	DOT 3 FIX INT. WARM WHITE	WHITE STRUC.	WHITE STRUC.
	034011212707	DOT 3 FIX INT. WARM WHITE	WHITE STRUC.	BLACK STRUC.
	034011213007	DOT 3 FIX INT. WARM WHITE	WHITE STRUC.	BLACK STRUC.
	034011212708	DOT 3 FIX INT. WARM WHITE	WHITE STRUC.	GOLD STRUC.
	034011213008	DOT 3 FIX INT. WARM WHITE	WHITE STRUC.	GOLD STRUC.

	Article n°	Description	Colour	Visor colour	Kelvin	Lumen	LDT
	034011212712	DOT 3 FIX INT. WARM WHITE	ANY RAL	WHITE STRUC.
	034011213012	DOT 3 FIX INT. WARM WHITE	ANY RAL	WHITE STRUC.
	034011212713	DOT 3 FIX INT. WARM WHITE	ANY RAL	BLACK STRUC.
	034011213013	DOT 3 FIX INT. WARM WHITE	ANY RAL	BLACK STRUC.
	034011212714	DOT 3 FIX INT. WARM WHITE	ANY RAL	GOLD STRUC.
	034011213014	DOT 3 FIX INT. WARM WHITE	ANY RAL	GOLD STRUC.

Specifications

COLOR	WHITE STRUC. or BLACK STRUC. or ANY RAL
LUMEN OUTPUT	2700 or 3000
VISOR COLOUR	BLACK STRUC. or WHITE STRUC. or GOLD STRUC.
MOUNTING	RECESSED
FIXATION	CEILING
APPLICATION	HOME INTERIOR
