Product drawing

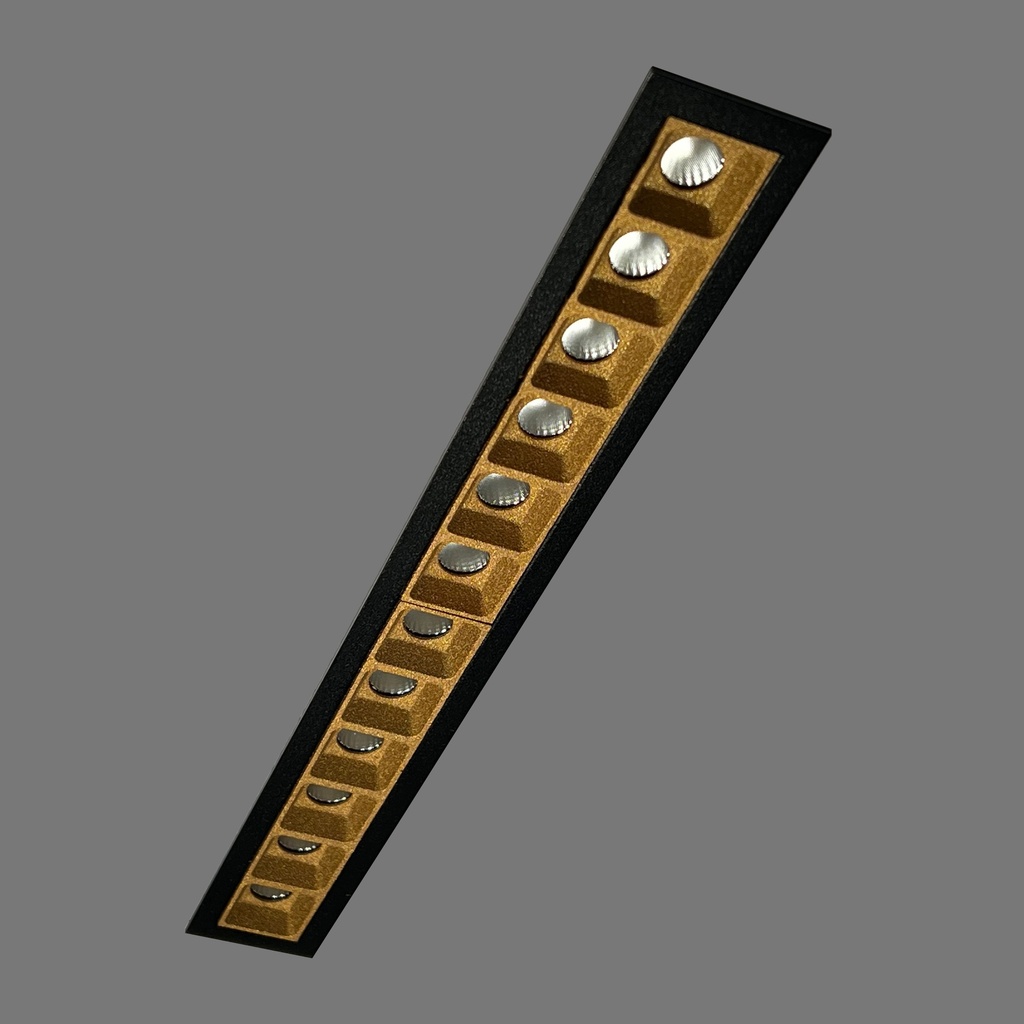

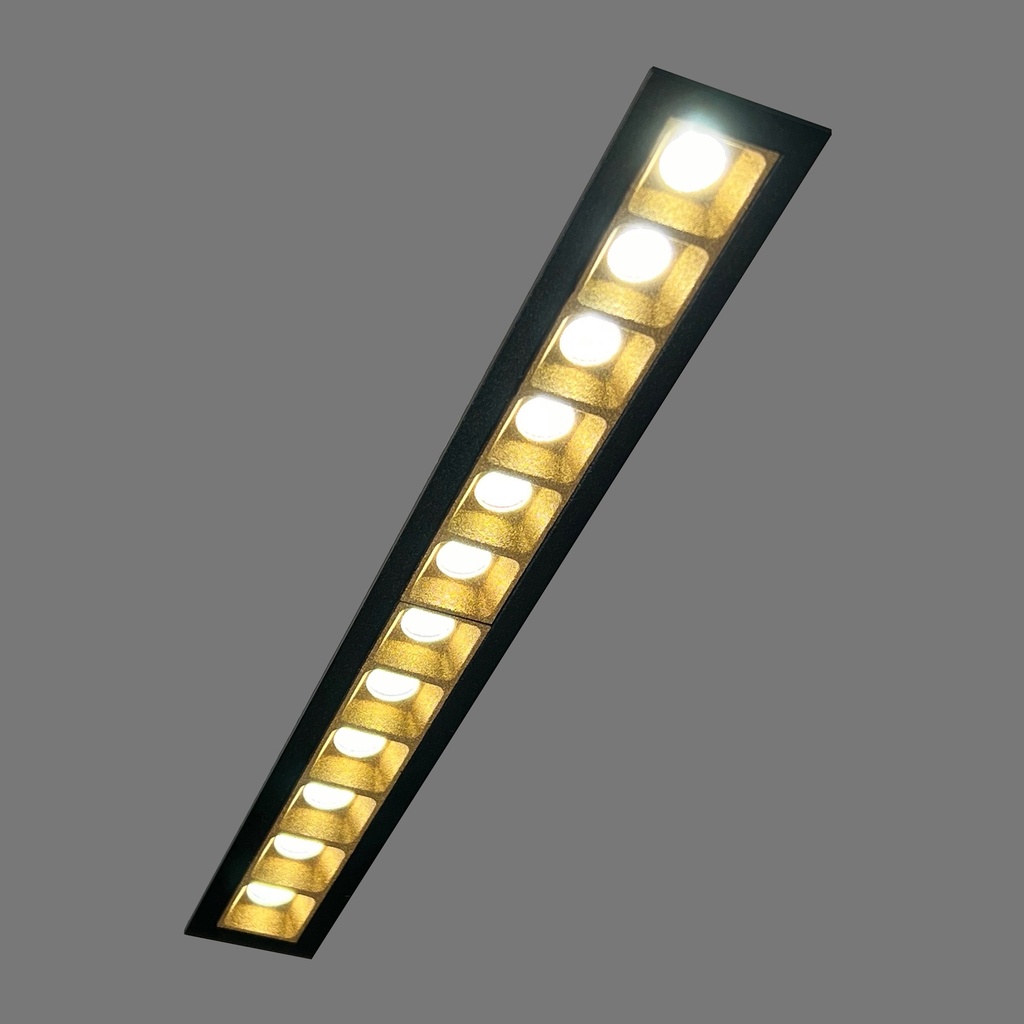

DOT 12

Download datasheet

SPECIFICATIONS

POWERLED(S)	12 x 2 Watt incl.
LENS	36°
CRI	90+
VOLTAGE	24W - 500mA
GEAR / DRIVER	Included L 120 x H 28 x W 44
POWER SUPPLY	500mA, 25-50V-, Max.25W
FORWARD VOLTAGE	60V
MATERIAL	Aluminium
MOUNTING DEPTH	40 mm
WEIGHT	0,400 KG
CUTOUT SHAPE / SIZE	Square 236mm x 28mm
IP	20

OPTIONS: All other Dimmable protocols are available on request.

179,90 €

MODELS

	Article n°	Description	Colour	Visor colour	Kelvin	Lumen	LDT
	036011212709	DOT 12 FIX INT. WARM WHITE	BLACK STRUC.	WHITE STRUC.
	036011213009	DOT 12 FIX INT. WARM WHITE	BLACK STRUC.	WHITE STRUC.
	036011212710	DOT 12 FIX INT. WARM WHITE	BLACK STRUC.	BLACK STRUC.
	036011213010	DOT 12 FIX INT. WARM WHITE	BLACK STRUC.	BLACK STRUC.
	036011212711	DOT 12 FIX INT. WARM WHITE	BLACK STRUC.	GOLD STRUC.
	036011213011	DOT 12 FIX INT. WARM WHITE	BLACK STRUC.	GOLD STRUC.

	Article n°	Description	Colour	Visor colour	Kelvin	Lumen	LDT
	036011212706	DOT 12 FIX INT. WARM WHITE	WHITE STRUC.	WHITE STRUC.
	036011213006	DOT 12 FIX INT. WARM WHITE	WHITE STRUC.	WHITE STRUC.
	036011212707	DOT 12 FIX INT. WARM WHITE	WHITE STRUC.	BLACK STRUC.
	036011213007	DOT 12 FIX INT. WARM WHITE	WHITE STRUC.	BLACK STRUC.
	036011212708	DOT 12 FIX INT. WARM WHITE	WHITE STRUC.	GOLD STRUC.
	036011213008	DOT 12 FIX INT. WARM WHITE	WHITE STRUC.	GOLD STRUC.

	Article n°	Description	Colour	Visor colour	Kelvin	Lumen	LDT
	036011212712	DOT 12 FIX INT. WARM WHITE	ANY RAL	WHITE STRUC.
	036011213012	DOT 12 FIX INT. WARM WHITE	ANY RAL	WHITE STRUC.
	036011212713	DOT 12 FIX INT. WARM WHITE	ANY RAL	BLACK STRUC.
	036011213013	DOT 12 FIX INT. WARM WHITE	ANY RAL	BLACK STRUC.
	036011212714	DOT 12 FIX INT. WARM WHITE	ANY RAL	GOLD STRUC.
	036011213014	DOT 12 FIX INT. WARM WHITE	ANY RAL	GOLD STRUC.

Specifications

COLOR	WHITE STRUC. or BLACK STRUC. or ANY RAL
LUMEN OUTPUT	2700 or 3000
VISOR COLOUR	BLACK STRUC. or WHITE STRUC. or GOLD STRUC.
MOUNTING	RECESSED
FIXATION	CEILING
APPLICATION	HOME INTERIOR
