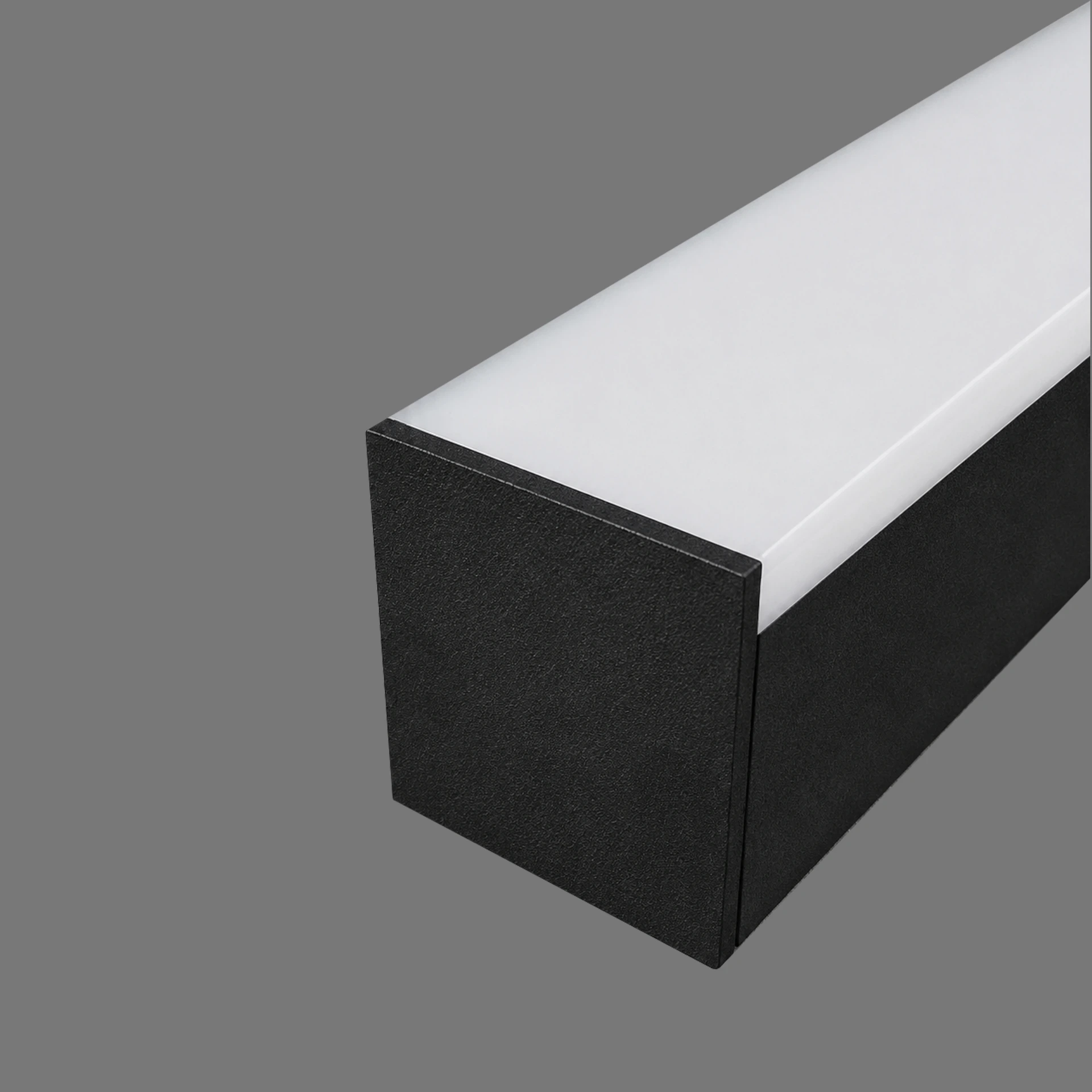

LINJA HIGH IP20 24VDC 18W

Download datasheet

SPECIFICATIONS

SMD LED(S) COB
MAX. POWER 18 Watt 0,75Amp per meter
BEAM ANGLE 120°
CRI 90+(opal) 75+(Black)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,6
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070030
197,90 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
047181112209 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 2200 1400 -
047181122209 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2200 1400 -
047181112709 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 2700 1400 -
047181122709 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2700 1400 -
047181113009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 3000 1600 -
047181123009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 3000 1600 -
047181114009 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING BLACK STRUC. 4000 1800 -
047181124009 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 4000 1800 -
047181112210 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 2200 1120 -
047181122210 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 2200 1120 -
047181112710 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 2700 1120 -
047181122710 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 2700 1120 -
047181113010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 3000 1280 -
047181123010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 3000 1280 -
047181114010 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING BLACK STRUC. 4000 1440 -
047181124010 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - MAGNET MOUNTING BLACK STRUC. 4000 1440 -
047181112206 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 2200 1400 -
047181122206 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2200 1400 -
047181112706 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 2700 1400 -
047181122706 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2700 1400 -
047181113006 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 3000 1600 -
047181123006 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 3000 1600 -
047181114006 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - CLIPS MOUNTING WHITE STRUC. 4000 1800 -
047181124006 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 4000 1800 -
047181112207 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 2200 1120 -
047181122207 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 2200 1120 -
047181112707 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 2700 1120 -
047181122707 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 2700 1120 -
047181113007 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 3000 1280 -
047181123007 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 3000 1280 -
047181114007 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING WHITE STRUC. 4000 1440 -
047181124007 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - MAGNET MOUNTING WHITE STRUC. 4000 1440 -
047181112228 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2200 1400 -
047181122228 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2200 1400 -
047181112728 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2700 1400 -
047181122728 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2700 1400 -
047181113028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 3000 1600 -
047181123028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 3000 1600 -
047181114028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 4000 1800 -
047181124028 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 4000 1800 -
047181112229 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2200 1120 -
047181122229 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 2200 1120 -
047181112729 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2700 1120 -
047181122729 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 2700 1120 -
047181113029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 3000 1280 -
047181123029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 3000 1280 -
047181114029 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 4000 1440 -
047181124029 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING NATURAL ANODIZED 4000 1440 -
047181112212 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 2200 1400 -
047181122212 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2200 1400 -
047181112712 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 2700 1400 -
047181122712 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2700 1400 -
047181113012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 3000 1600 -
047181123012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 3000 1600 -
047181114012 LEDPROFILE LINJA INT. WARM WHITE - HIGH OPAL PC - CLIPS MOUNTING ANY RAL 4000 1800 -
047181124012 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 4000 1800 -
047181112213 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 2200 1120 -
047181122213 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 2200 1120 -
047181112713 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 2700 1120 -
047181122713 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 2700 1120 -
047181113013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 3000 1280 -
047181123013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 3000 1280 -
047181114013 LEDPROFILE LINJA INT. NATURAL WHITE - HIGH BLACK PC - CLIPS MOUNTING ANY RAL 4000 1440 -
047181124013 LEDPROFILE LINJA INT. WARM WHITE - HIGH BLACK PC - MAGNET MOUNTING ANY RAL 4000 1440 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
LUMEN OUTPUT 2200 or 2700 or 3000 or 4000
TO MOUNT CLIPS or MAGNET
DIFFUSOR PC HIGH OPAL or PC HIGH BLACK
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
WATT 18
