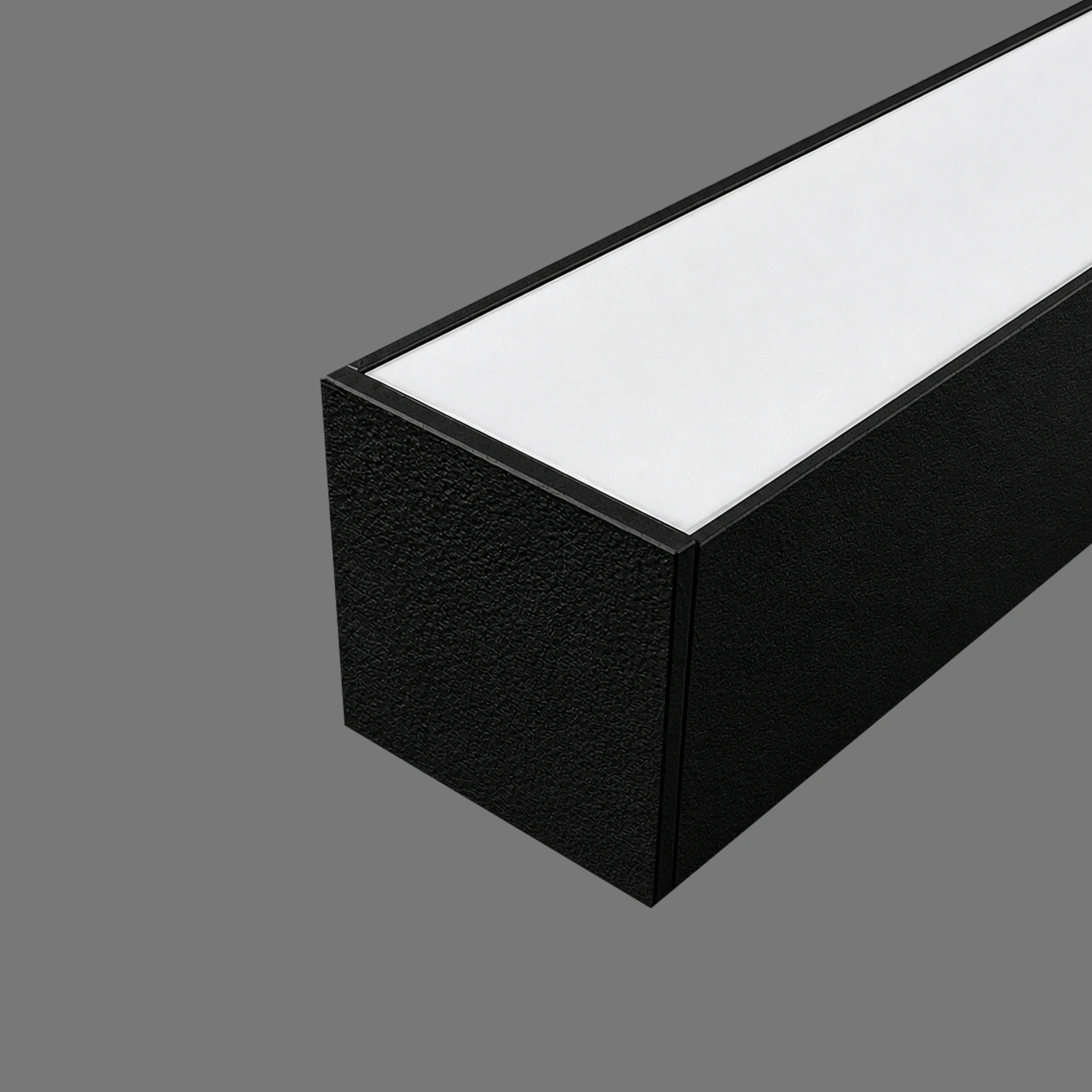

LINJA FLAT IP20 24VDC 14,4W

Download datasheet

SPECIFICATIONS

SMD LED(S) 180 per meter
MAX. POWER 14,4 Watt 0,6Amp per meter
BEAM ANGLE 120°
CRI 90+(opal) 75+(Black)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,6
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070030
187,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
046241112209 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 2200 700 -
046241122209 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 2200 700 -
046241112709 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 2700 700 -
046241122709 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 2700 700 -
046241113009 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 3000 800 -
046241123009 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 3000 800 -
046241114009 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING BLACK STRUC. 4000 900 -
046241124009 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 4000 900 -
046241112210 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 2200 560 -
046241122210 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 2200 560 -
046241112710 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 2700 560 -
046241122710 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 2700 560 -
046241113010 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 3000 640 -
046241123010 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 3000 640 -
046241114010 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING BLACK STRUC. 4000 720 -
046241124010 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 4000 720 -
046241112206 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 2200 700 -
046241122206 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2200 700 -
046241112706 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 2700 700 -
046241122706 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 2700 700 -
046241113006 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 3000 800 -
046241123006 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 3000 800 -
046241114006 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING WHITE STRUC. 4000 900 -
046241124006 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 4000 900 -
046241112207 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 2200 560 -
046241122207 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2200 560 -
046241112707 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 2700 560 -
046241122707 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2700 560 -
046241113007 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 3000 640 -
046241123007 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 3000 640 -
046241114007 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING WHITE STRUC. 4000 720 -
046241124007 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 4000 720 -
046241112228 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2200 700 -
046241122229 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 2200 560 -
046241112728 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 2700 700 -
046241122728 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 700 -
046241113028 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 3000 800 -
046241123028 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 800 -
046241114028 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING NATURAL ANODIZED 4000 900 -
046241124028 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 900 -
046241112229 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2200 560 -
046241122228 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 2200 560 -
046241112729 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 2700 560 -
046241122729 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 560 -
046241113029 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 3000 640 -
046241123029 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 640 -
046241114029 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING NATURAL ANODIZED 4000 720 -
046241124029 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 720 -
046241112212 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 2200 700 -
046241122212 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 2200 700 -
046241112712 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 2700 700 -
046241122712 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 2700 700 -
046241113012 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 3000 800 -
046241123012 LEDPROFILE LINJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 3000 800 -
046241114012 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - CLIPS MOUNTING ANY RAL 4000 900 -
046241124012 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 4000 900 -
046241112213 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 2200 560 -
046241122213 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 2200 560 -
046241112713 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 2700 560 -
046241122713 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 2700 560 -
046241113013 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 3000 640 -
046241123013 LEDPROFILE LINJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 3000 640 -
046241114013 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - CLIPS MOUNTING ANY RAL 4000 720 -
046241124013 LEDPROFILE LINJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 4000 720 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
LUMEN OUTPUT 2200 or 2700 or 3000 or 4000
TO MOUNT CLIPS or MAGNET
DIFFUSOR PC FLAT OPAL or PC FLAT BLACK
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
WATT 14,4
