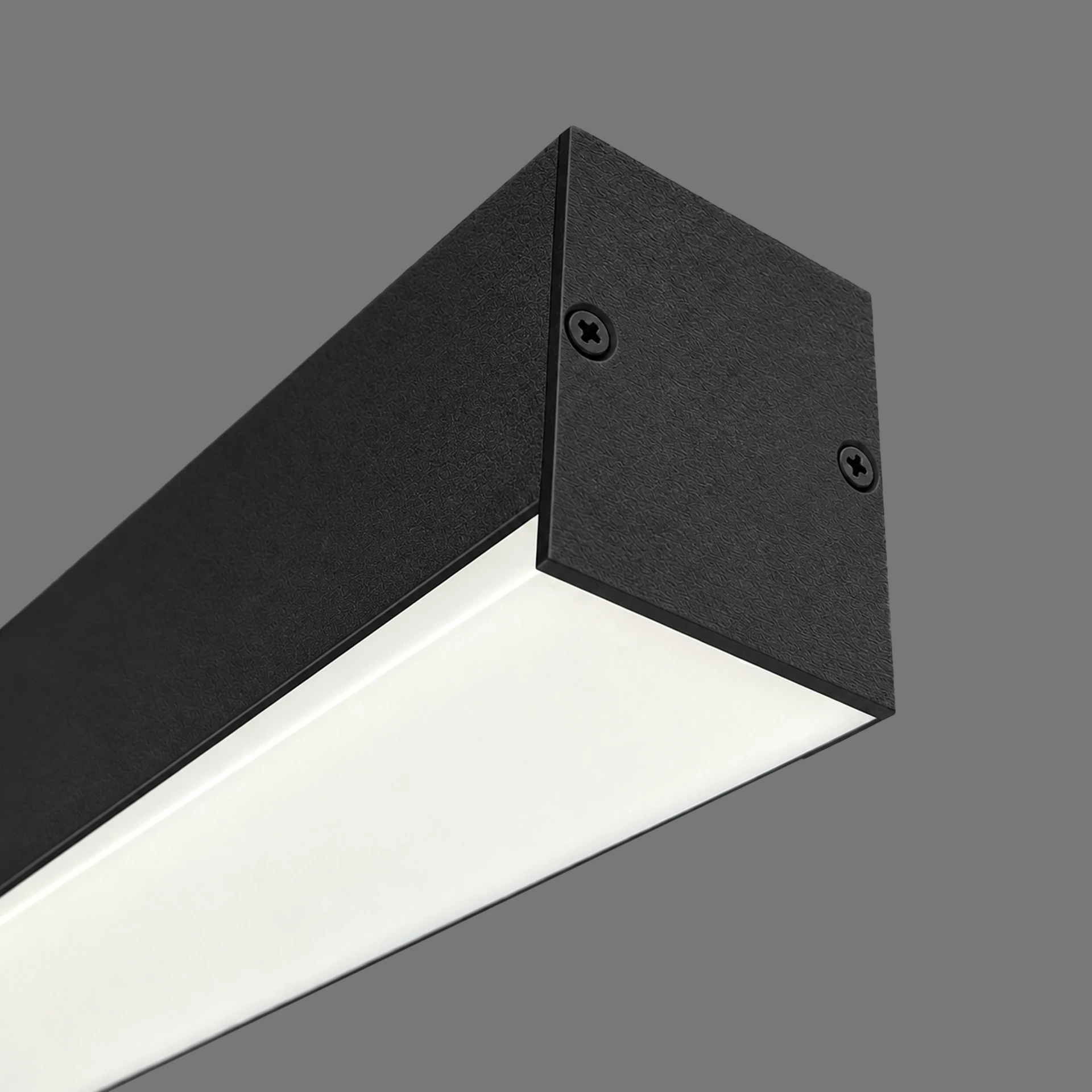

EDJA HIGH IP20 24VDC 36W

Download datasheet

SPECIFICATIONS

SMD LED(S) COB led
MAX. POWER 36 Watt 1,5Amp per meter
BEAM ANGLE 120°
CRI 90+(opal)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,7
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070036
264,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
049361112209 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 2200 2000 -
049361122209 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2200 2000 -
049361112709 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 2700 2000 -
049361122709 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2700 2000 -
049361113009 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 3000 2300 -
049361123009 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 3000 2300 -
049361114009 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 4000 2570 -
049361124009 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 4000 2570 -
049361112206 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 2200 2000 -
049361122206 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2200 2000 -
049361112706 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 2700 2000 -
049361122706 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2700 2000 -
049361113006 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 3000 2300 -
049361123006 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 3000 2300 -
049361114006 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 4000 2570 -
049361124006 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 4000 2570 -
049361112228 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING NATURAL ANODIZED 2200 2000 -
049361122228 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2200 2000 -
049361112728 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING NATURAL ANODIZED 2700 2000 -
049361122728 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2700 2000 -
049361121308 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING NATURAL ANODIZED 3000 2300 -
049361123028 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 3000 2300 -
049361114028 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING NATURAL ANODIZED 4000 2570 -
049361124028 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 4000 2570 -
049361112212 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING ANY RAL 2200 2000 -
049361122212 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2200 2000 -
049361112712 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING ANY RAL 2700 2000 -
049361122712 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2700 2000 -
049361113012 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING ANY RAL 3000 2300 -
049361123012 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 3000 2300 -
049361114012 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING ANY RAL 4000 2570 -
049361124012 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 4000 2570 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
KELVIN 2200 or 2700 or 3000 or 4000
TO MOUNT MAGNET or BACKPLATE
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
DIFFUSOR PC HIGH OPAL
APPLICATION HOME INTERIOR
WATT 36
