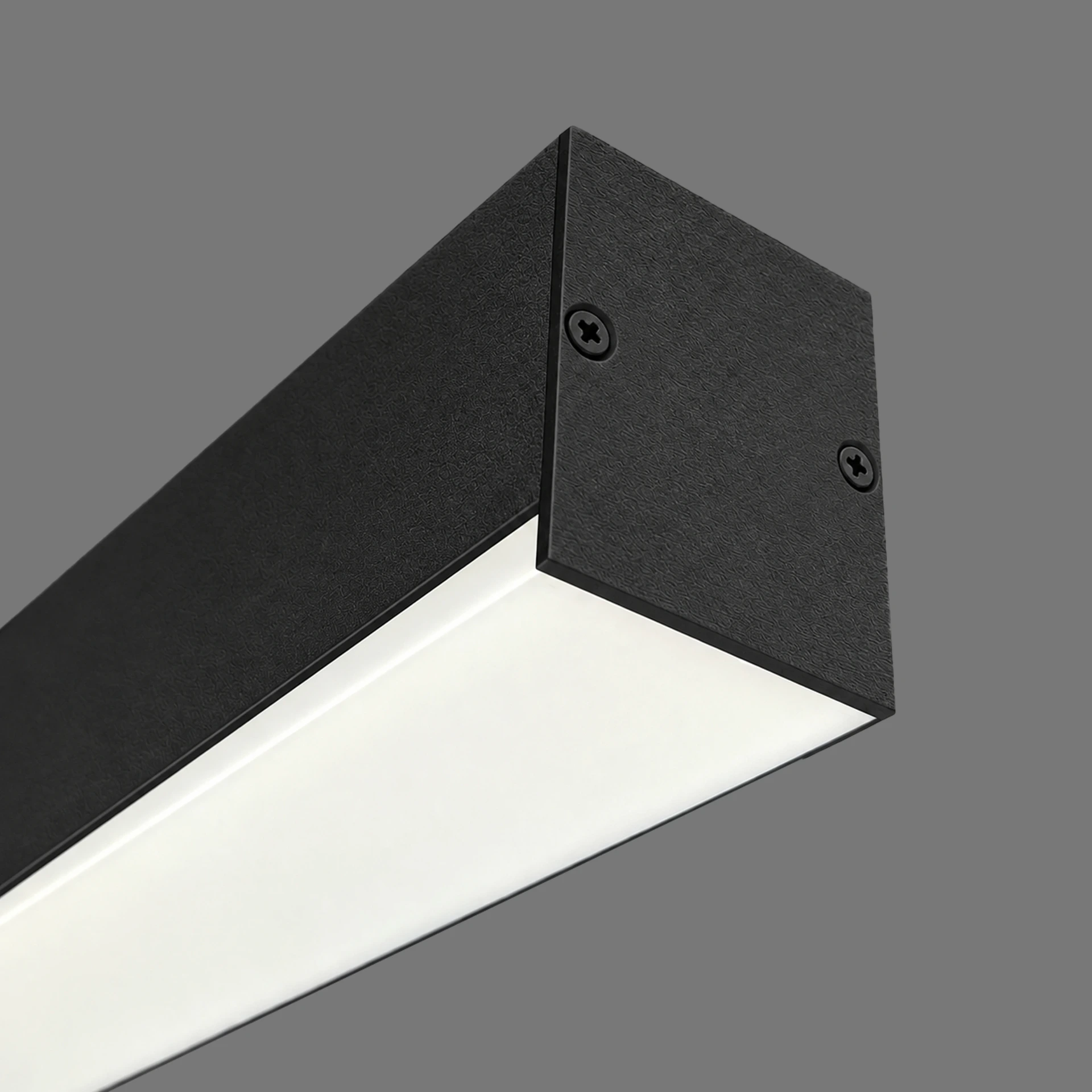

EDJA HIGH IP20 24VDC 28,8W

Download datasheet

SPECIFICATIONS

SMD LED(S) 360 per meter
MAX. POWER 28,8 Watt 1,2Amp per meter
BEAM ANGLE 120°
CRI 90+(opal)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,7
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070036
251,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
049281112209 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 2200 1400 -
049281122209 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2200 1400 -
049281112709 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 2700 1400 -
049281122709 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2700 1400 -
049281113009 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 3000 1600 -
049281123009 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 3000 1600 -
049281114009 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 4000 1800 -
049281124009 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 4000 1800 -
049281112206 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 2200 1400 -
049281122206 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2200 1400 -
049281112706 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 2700 1400 -
049281122706 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2700 1400 -
049281113006 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 3000 1600 -
049281123006 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 3000 1600 -
049281114006 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 4000 1800 -
049281124006 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 4000 1800 -
049281112228 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING NATURAL ANODIZED 2200 1400 -
049281122228 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2200 1400 -
049281112728 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING NATURAL ANODIZED 2700 1400 -
049281122728 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2700 1400 -
049281121308 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING NATURAL ANODIZED 3000 1600 -
049281123028 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 3000 1600 -
049281114028 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING NATURAL ANODIZED 4000 1800 -
049281124028 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 4000 1800 -
049281112212 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING ANY RAL 2200 1400 -
049281122212 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2200 1400 -
049281112712 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING ANY RAL 2700 1400 -
049281122712 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2700 1400 -
049281113012 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING ANY RAL 3000 1400 -
049281123012 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 3000 1600 -
049281114012 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING ANY RAL 4000 1800 -
049281124012 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 4000 1800 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
KELVIN 2200 or 2700 or 3000 or 4000
TO MOUNT MAGNET or BACKPLATE
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
DIFFUSOR PC HIGH OPAL
APPLICATION HOME INTERIOR
WATT 28,8
