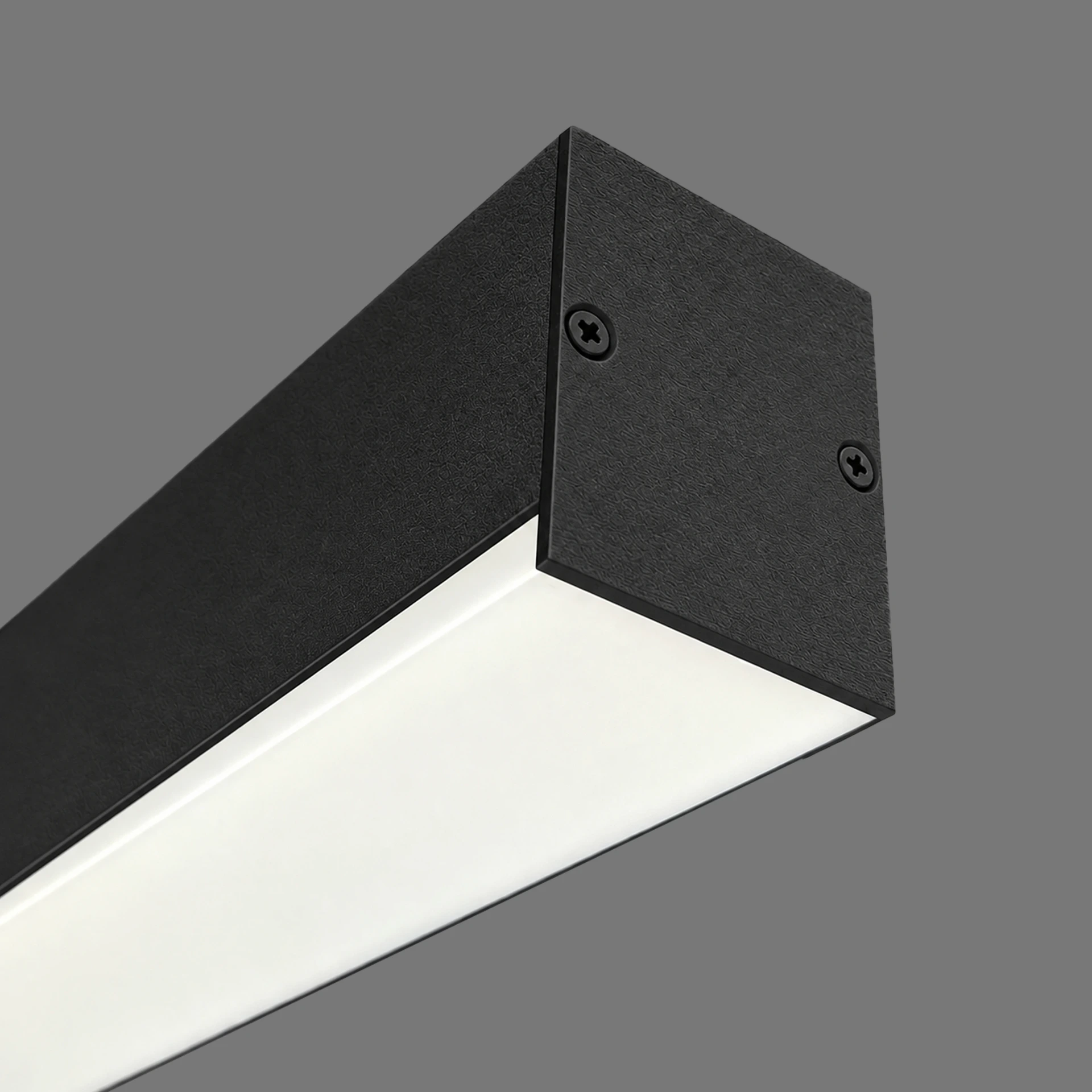

EDJA HIGH IP20 24VDC 19,2W

Download datasheet

SPECIFICATIONS

SMD LED(S) 340 per meter
MAX. POWER 19,2 Watt 0,8Amp per meter
BEAM ANGLE 120°
CRI 90+(opal)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,7
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070036
235,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
049191112209 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 2200 900 -
049191122209 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2200 900 -
049191112709 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 2700 900 -
049191122709 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 2700 900 -
049191113009 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 3000 1030 -
049191123009 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 3000 1030 -
049191114009 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 4000 1160 -
049191124009 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING BLACK STRUC. 4000 1160 -
049191112206 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 2200 900 -
049191122206 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2200 900 -
049191112706 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 2700 900 -
049191122706 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 2700 900 -
049191113006 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 3000 1030 -
049191123006 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 3000 1030 -
049191114006 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 4000 1160 -
049191124006 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING WHITE STRUC. 4000 1160 -
049191112228 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING NATURAL ANODIZED 2200 900 -
049191122228 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2200 900 -
049191112728 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING NATURAL ANODIZED 2700 900 -
049191122728 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 2700 900 -
049191121308 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING NATURAL ANODIZED 3000 1030 -
049191123028 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 3000 1030 -
049191114028 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING NATURAL ANODIZED 4000 1160 -
049191124028 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING NATURAL ANODIZED 4000 1160 -
049191112212 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING ANY RAL 2200 900 -
049191122212 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2200 900 -
049191112712 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING ANY RAL 2700 900 -
049191122712 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 2700 900 -
049191113012 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING ANY RAL 3000 1030 -
049191123012 LEDPROFILE EDJA INT. WARM WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 3000 1030 -
049191114012 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - BAKCPLATE MOUNTING ANY RAL 4000 1160 -
049191124012 LEDPROFILE EDJA INT. NATURAL WHITE - HIGH OPAL PC - MAGNET MOUNTING ANY RAL 4000 1160 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
KELVIN 2200 or 2700 or 3000 or 4000
TO MOUNT MAGNET or BACKPLATE
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
DIFFUSOR PC HIGH OPAL
APPLICATION HOME INTERIOR
WATT 19,2
