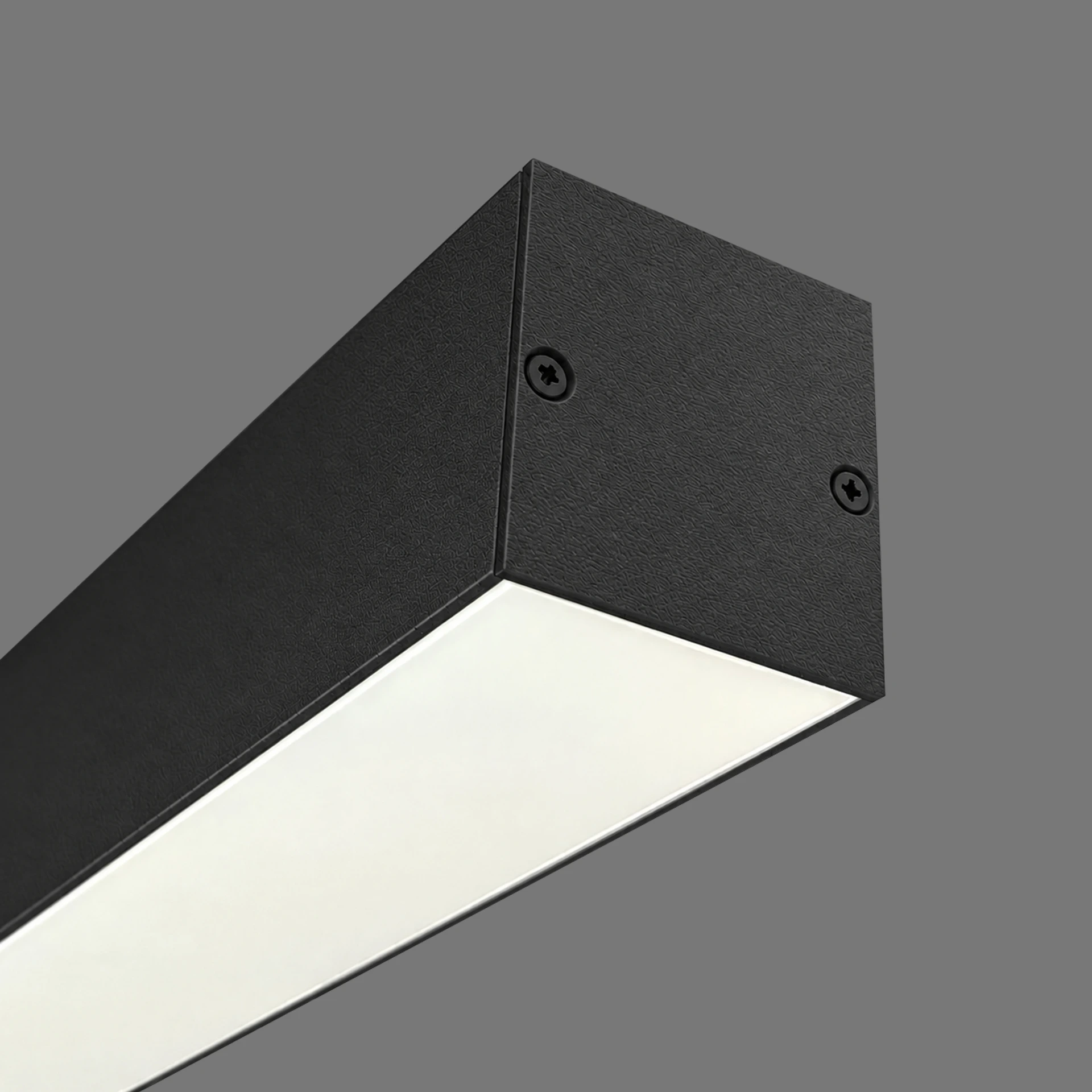

EDJA FLAT IP20 24VDC 44W

Download datasheet

SPECIFICATIONS

SMD LED(S) 256 per meter
MAX. POWER 44 Watt 1,84Amp per meter
BEAM ANGLE 120°
CRI 90+(opal) 75+(Black)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,7
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070036
279,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
048441112709 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING BLACK STRUC. 2700 3900 -
048441122709 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 2700 3900 -
048441113009 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING BLACK STRUC. 3000 4500 -
048441123009 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 3000 4500 -
048441114009 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 4000 4720 -
048441124009 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 4000 4720 -
048441112710 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING BLACK STRUC. 2700 3120 -
048441122710 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 2700 3120 -
048441113010 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING BLACK STRUC. 3000 3600 -
048441123010 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 3000 3600 -
048441114010 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BAKCPLATE MOUNTING BLACK STRUC. 4000 3780 -
048441124010 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 4000 3780 -
048441112706 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING WHITE STRUC. 2700 3900 -
048441122706 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 2700 3900 -
048441113006 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING WHITE STRUC. 3000 4500 -
048441123006 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 3000 4500 -
048441114006 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 4000 4720 -
048441124006 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 4000 4720 -
048441112707 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING WHITE STRUC. 2700 3120 -
048441122707 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2700 3120 -
048441113007 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING WHITE STRUC. 3000 3600 -
048441123007 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 3000 3600 -
048441114007 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BAKCPLATE MOUNTING WHITE STRUC. 4000 3780 -
048441124007 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 4000 3780 -
048441112728 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING NATURAL ANODIZED 2700 3900 -
048441122728 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 3900 -
048441113028 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING NATURAL ANODIZED 3000 4500 -
048441123028 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 4500 -
048441114028 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - BACKPLATE MOUNTING NATURAL ANODIZED 4000 4720 -
048441124028 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 4720 -
048441112729 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING NATURAL ANODIZED 2700 3120 -
048441122729 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 3120 -
048441113029 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING NATURAL ANODIZED 3000 3600 -
048441123029 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 3600 -
048441114029 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BACKPLATE MOUNTING NATURAL ANODIZED 4000 3780 -
048441124029 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 3780 -
048441112712 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING ANY RAL 2700 3900 -
048441122712 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 2700 3900 -
048441113012 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BAKCPLATE MOUNTING ANY RAL 3000 4500 -
048441123012 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 3000 4500 -
048441114012 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - BAKCPLATE MOUNTING ANY RAL 4000 4720 -
048441124012 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 4000 4720 -
048441112713 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING ANY RAL 2700 3120 -
048441122713 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 2700 3120 -
048441113013 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BAKCPLATE MOUNTING ANY RAL 3000 3600 -
048441123013 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 3000 3600 -
048441114013 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BACKPLATE MOUNTING ANY RAL 4000 3780 -
048441124013 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 4000 3780 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
KELVIN 2700 or 3000 or 4000
TO MOUNT MAGNET or BACKPLATE
DIFFUSOR PC FLAT OPAL or PC FLAT BLACK
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
WATT 44
