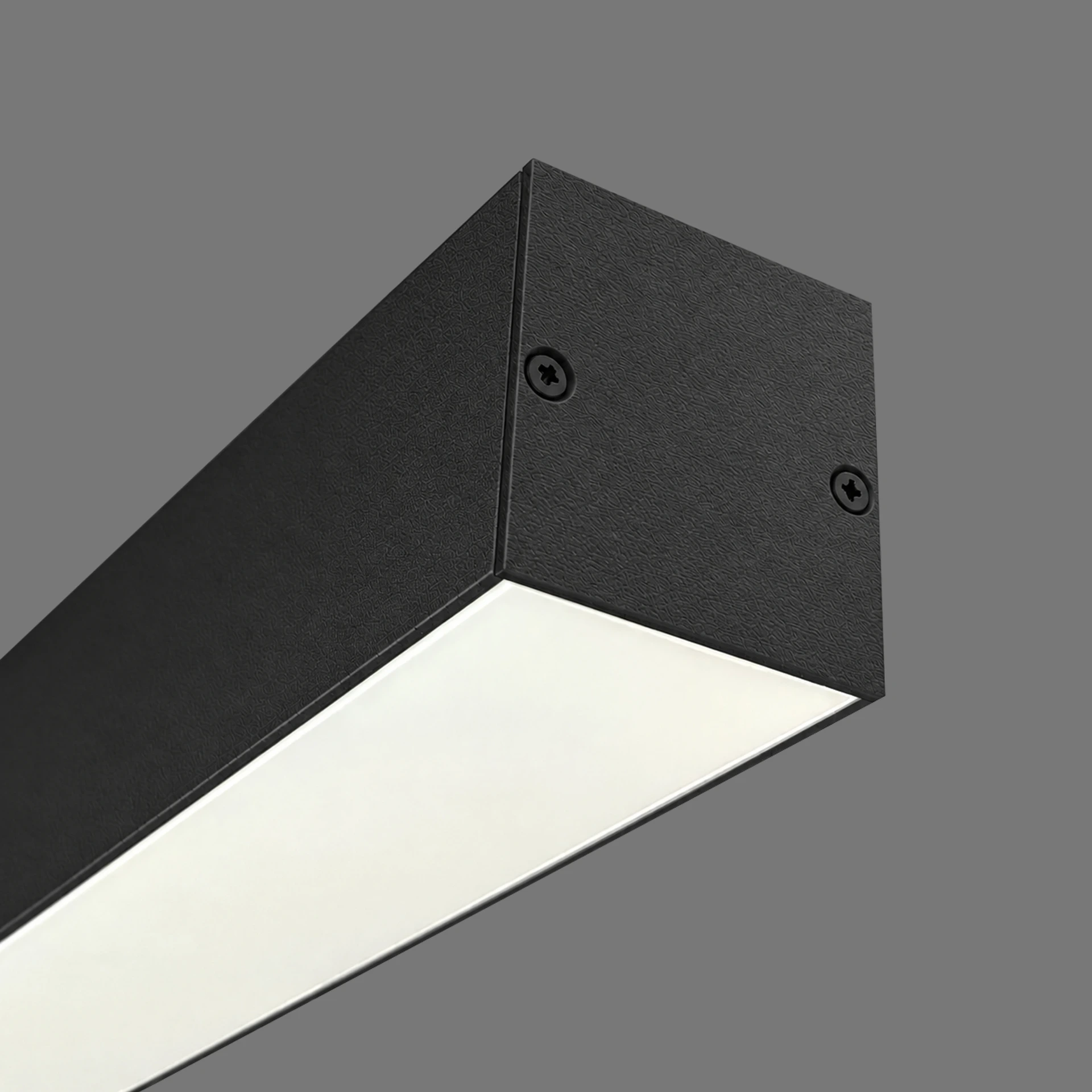

EDJA FLAT IP20 24VDC 36W

Download datasheet

SPECIFICATIONS

SMD LED(S) COB led
MAX. POWER 36 Watt 1,5Amp per meter
BEAM ANGLE 120°
CRI 90+(opal) 75+(Black)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,7
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070036
240,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
048361112209 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING BLACK STRUC. 2200 2000 -
048361122209 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 2200 2000 -
048361112709 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING BLACK STRUC. 2700 2000 -
048361122709 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 2700 2000 -
048361113009 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING BLACK STRUC. 3000 2300 -
048361123009 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 3000 2300 -
048361114009 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 4000 2570 -
048361124009 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 4000 2570 -
048361112210 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING BLACK STRUC. 2200 1600 -
048361122210 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 2200 1600 -
048361112710 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING BLACK STRUC. 2700 1600 -
048361122710 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 2700 1600 -
048361113010 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING BLACK STRUC. 3000 1840 -
048361123010 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 3000 1840 -
048361114010 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BAKCPLATE MOUNTING BLACK STRUC. 4000 2056 -
048361124010 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 4000 2056 -
048361112206 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING WHITE STRUC. 2200 2000 -
048361122206 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 2200 2000 -
048361112706 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING WHITE STRUC. 2700 2000 -
048361122706 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 2700 2000 -
048361113006 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING WHITE STRUC. 3000 2300 -
048361123006 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 3000 2300 -
048361114006 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 4000 2570 -
048361124006 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 4000 2570 -
048361112207 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BACKPLATE MOUNTING WHITE STRUC. 2200 1600 -
048361122207 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2200 1600 -
048361112707 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING WHITE STRUC. 2700 1600 -
048361122707 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2700 1600 -
048361113007 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING WHITE STRUC. 3000 1840 -
048361123007 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 3000 1840 -
048361114007 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BAKCPLATE MOUNTING WHITE STRUC. 4000 2056 -
048361124007 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 4000 2056 -
048361112228 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING NATURAL ANODIZED 2200 2000 -
048361122228 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 2200 2000 -
048361112728 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING NATURAL ANODIZED 2700 2000 -
048361122728 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 2000 -
048361113028 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING NATURAL ANODIZED 3000 2300 -
048361123028 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 2300 -
048361114028 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - BACKPLATE MOUNTING NATURAL ANODIZED 4000 2570 -
048361124028 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 2570 -
048361112229 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING NATURAL ANODIZED 2200 1600 -
048361122229 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 2200 1600 -
048361112729 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING NATURAL ANODIZED 2700 1600 -
048361122729 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 1600 -
048361113029 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING NATURAL ANODIZED 3000 1840 -
048361123029 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 1840 -
048361114029 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BACKPLATE MOUNTING NATURAL ANODIZED 4000 2056 -
048361124029 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 2056 -
048361112212 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING ANY RAL 2200 2000 -
048361122212 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 2200 2000 -
048361112712 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING ANY RAL 2700 2000 -
048361122712 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 2700 2000 -
048361113012 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BAKCPLATE MOUNTING ANY RAL 3000 2300 -
048361123012 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 3000 2300 -
048361114012 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - BAKCPLATE MOUNTING ANY RAL 4000 2570 -
048361124012 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 4000 2570 -
048361112213 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BAKCPLATE MOUNTING ANY RAL 2200 1600 -
048361122213 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 2200 1600 -
048361112713 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING ANY RAL 2700 1600 -
048361122713 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 2700 1600 -
048361113013 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BAKCPLATE MOUNTING ANY RAL 3000 1840 -
048361123013 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 3000 1840 -
048361114013 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BACKPLATE MOUNTING ANY RAL 4000 2056 -
048361124013 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 4000 2056 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
KELVIN 2200 or 2700 or 3000 or 4000
TO MOUNT MAGNET or BACKPLATE
DIFFUSOR PC FLAT OPAL or PC FLAT BLACK
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
WATT 36
