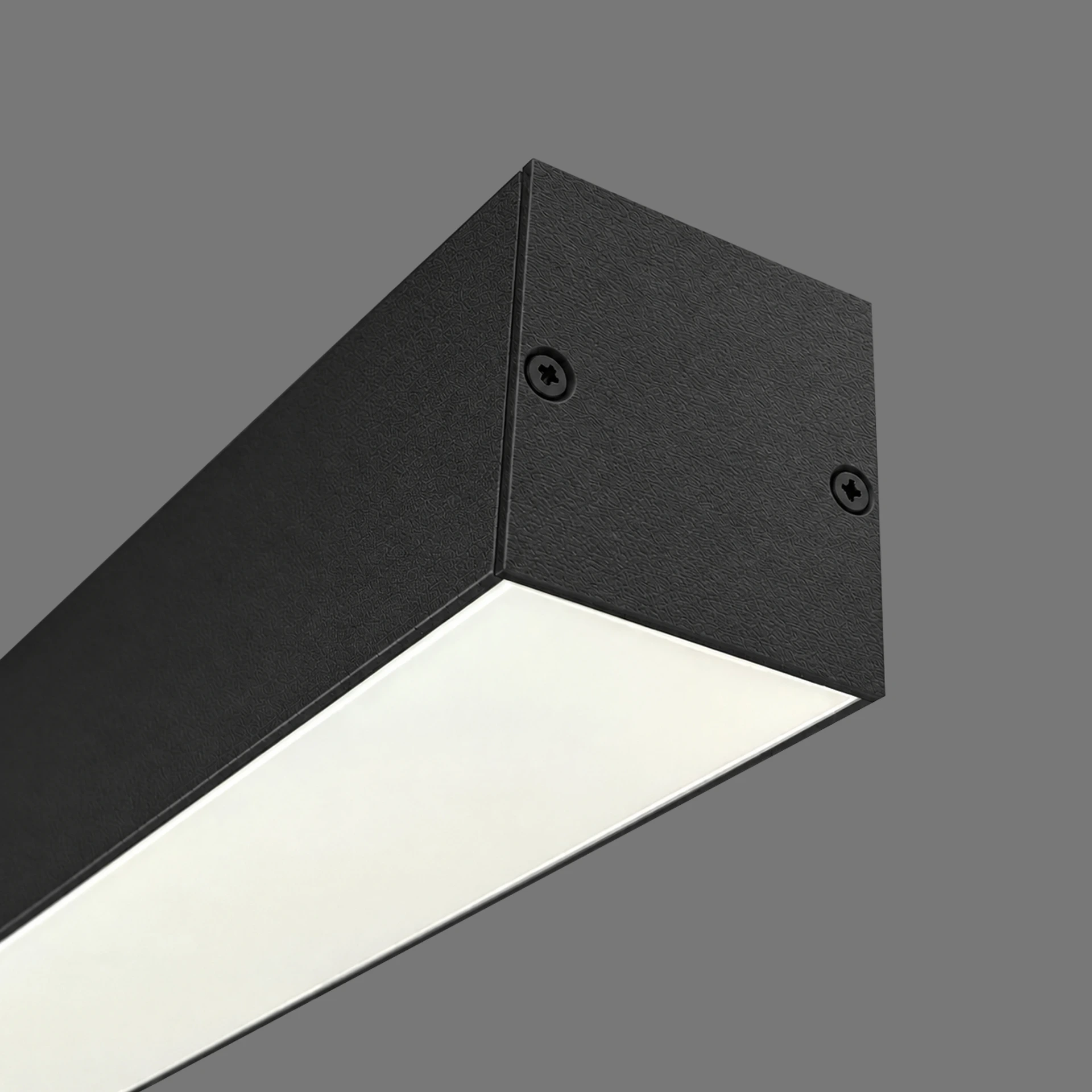

EDJA FLAT IP20 24VDC 19,2W

Download datasheet

SPECIFICATIONS

SMD LED(S) 340 per meter
MAX. POWER 19,2 Watt 0,8Amp per meter
BEAM ANGLE 120°
CRI 90+(opal) 75+(Black)
VOLTAGE 24 VDC
GEAR / DRIVER Not included
MATERIAL Aluminium / Pc
MAX. LENGTH 50/6000 mm (1 profile/ 1 defuser)
WEIGHT (KG) 1,7
IP 20
ORDER PER METER
OPTIONS: INTERNAL DRIVER = ORDER SEPARATELY : LINJA POWER SUPPLY 24VDC 20W P/M ORDER CODE : 800241070036
222,00 €

Contact Us

MODELS

Article n° Description Colour Kelvin Lumen LDT
048191112209 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING BLACK STRUC. 2200 900 -
048191122209 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 2200 900 -
048191112709 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING BLACK STRUC. 2700 900 -
048191122709 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 2700 900 -
048191113009 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING BLACK STRUC. 3000 1030 -
048191123009 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 3000 1030 -
048191114009 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - BAKCPLATE MOUNTING BLACK STRUC. 4000 1160 -
048191124009 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING BLACK STRUC. 4000 1160 -
048191112210 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING BLACK STRUC. 2200 720 -
048191122210 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 2200 720 -
048191112710 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING BLACK STRUC. 2700 720 -
048191122710 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 2700 720 -
048191113010 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING BLACK STRUC. 3000 824 -
048191123010 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 3000 812 -
048191114010 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BAKCPLATE MOUNTING BLACK STRUC. 4000 928 -
048191124010 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING BLACK STRUC. 4000 928 -
048191112206 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING WHITE STRUC. 2200 900 -
048191122206 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 2200 900 -
048191112706 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING WHITE STRUC. 2700 900 -
048191122706 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 2700 900 -
048191113006 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING WHITE STRUC. 3000 1030 -
048191123006 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 3000 1030 -
048191114006 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - BAKCPLATE MOUNTING WHITE STRUC. 4000 1160 -
048191124006 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING WHITE STRUC. 4000 1160 -
048191112207 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BACKPLATE MOUNTING WHITE STRUC. 2200 720 -
048191122207 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2200 720 -
048191112707 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING WHITE STRUC. 2700 720 -
048191122707 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 2700 720 -
048191113007 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING WHITE STRUC. 3000 824 -
048191123007 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 3000 812 -
048191114007 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BAKCPLATE MOUNTING WHITE STRUC. 4000 928 -
048191124007 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING WHITE STRUC. 4000 928 -
048191112228 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING NATURAL ANODIZED 2200 900 -
048191122228 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 2200 900 -
048191112728 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING NATURAL ANODIZED 2700 900 -
048191122728 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 900 -
048191113028 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING NATURAL ANODIZED 3000 1030 -
048191123028 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 1030 -
048191114028 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - BACKPLATE MOUNTING NATURAL ANODIZED 4000 1160 -
048191124028 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 1160 -
048191112229 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING NATURAL ANODIZED 2200 720 -
048191122229 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 2200 720 -
048191112729 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING NATURAL ANODIZED 2700 720 -
048191122729 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 2700 720 -
048191113029 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING NATURAL ANODIZED 3000 824 -
048191123029 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 3000 812 -
048191114029 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BACKPLATE MOUNTING NATURAL ANODIZED 4000 928 -
048191124029 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING NATURAL ANODIZED 4000 928 -
048191112212 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING ANY RAL 2200 900 -
048191122212 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 2200 900 -
048191112712 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BACKPLATE MOUNTING ANY RAL 2700 900 -
048191122712 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 2700 900 -
048191113012 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - BAKCPLATE MOUNTING ANY RAL 3000 1030 -
048191123012 LEDPROFILE EDJA INT. WARM WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 3000 1030 -
048191114012 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - BAKCPLATE MOUNTING ANY RAL 4000 1160 -
048191124012 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT OPAL PC - MAGNETS MOUNTING ANY RAL 4000 1160 -
048191112213 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BAKCPLATE MOUNTING ANY RAL 2200 720 -
048191122213 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 2200 720 -
048191112713 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BACKPLATE MOUNTING ANY RAL 2700 720 -
048191122713 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 2700 720 -
048191113013 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - BAKCPLATE MOUNTING ANY RAL 3000 824 -
048191123013 LEDPROFILE EDJA INT. WARM WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 3000 812 -
048191114013 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - BACKPLATE MOUNTING ANY RAL 4000 928 -
048191124013 LEDPROFILE EDJA INT. NATURAL WHITE - FLAT BLACK PC - MAGNETS MOUNTING ANY RAL 4000 928 -
COLOR WHITE STRUC. or BLACK STRUC. or ANY RAL or NATURAL ANODIZED
KELVIN 2200 or 2700 or 3000 or 4000
TO MOUNT MAGNET or BACKPLATE
DIFFUSOR PC FLAT OPAL or PC FLAT BLACK
MOUNTING SURFACE or RECESSED
FIXATION CEILING or WALL
APPLICATION HOME INTERIOR
WATT 19,2
