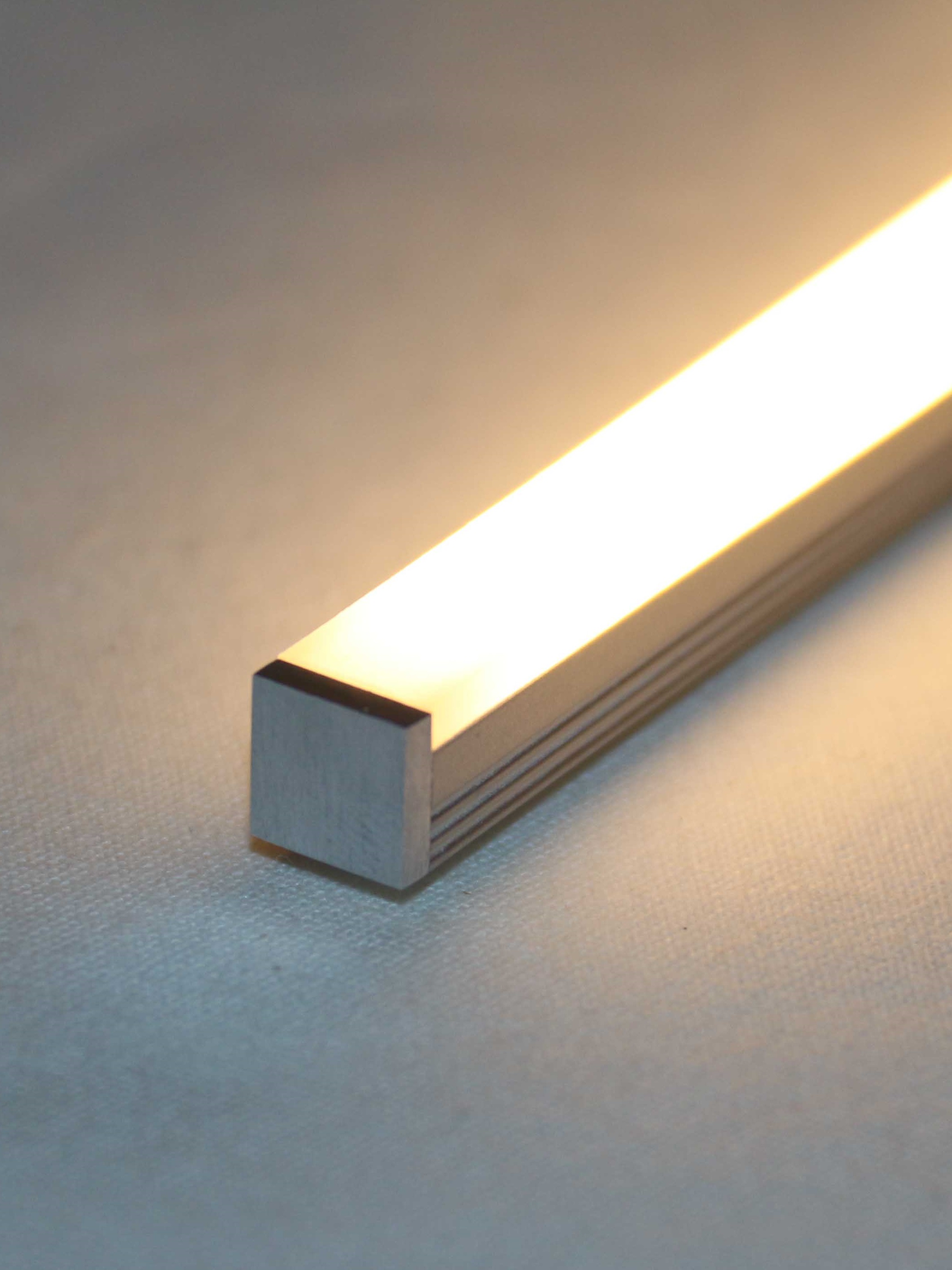

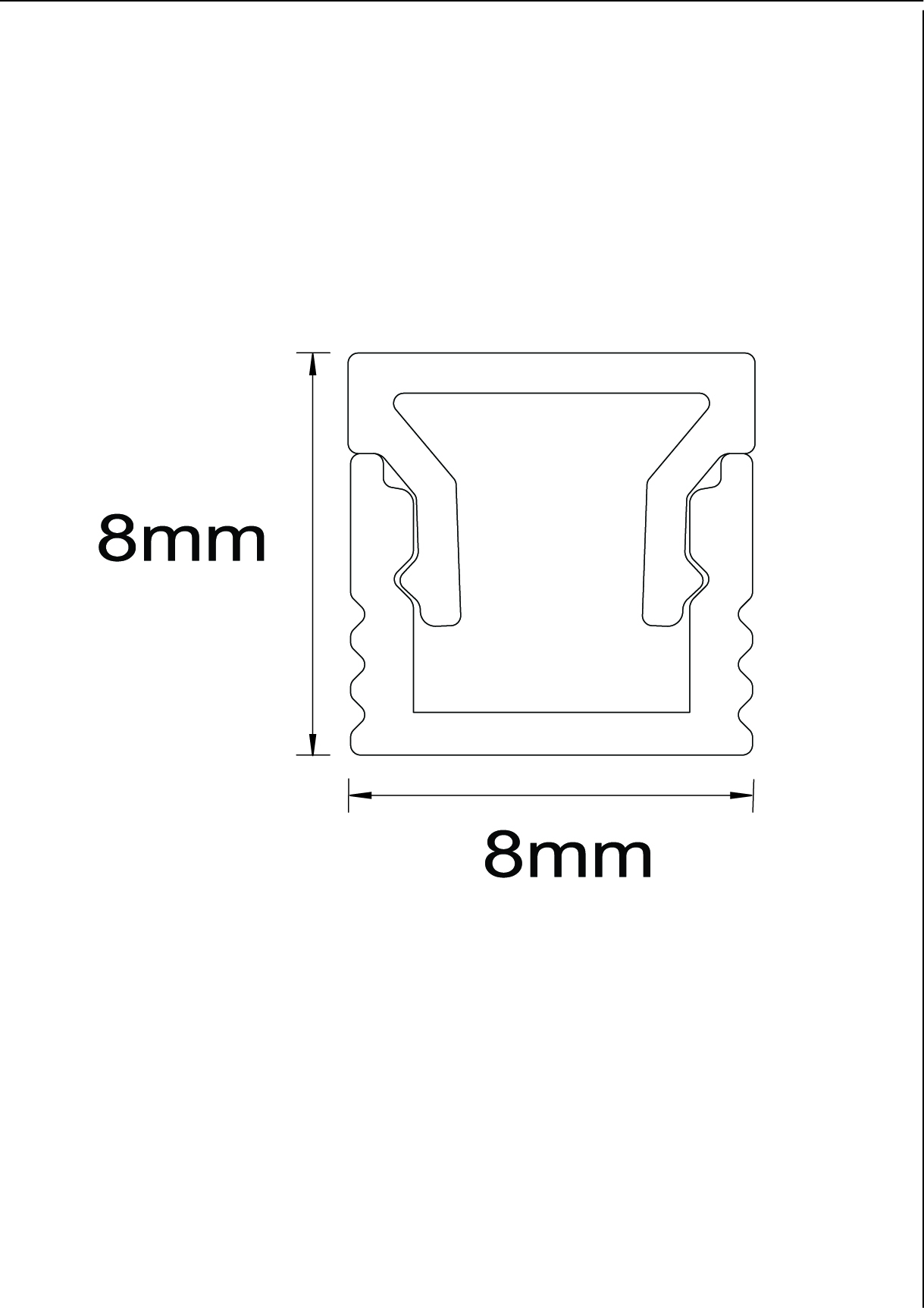

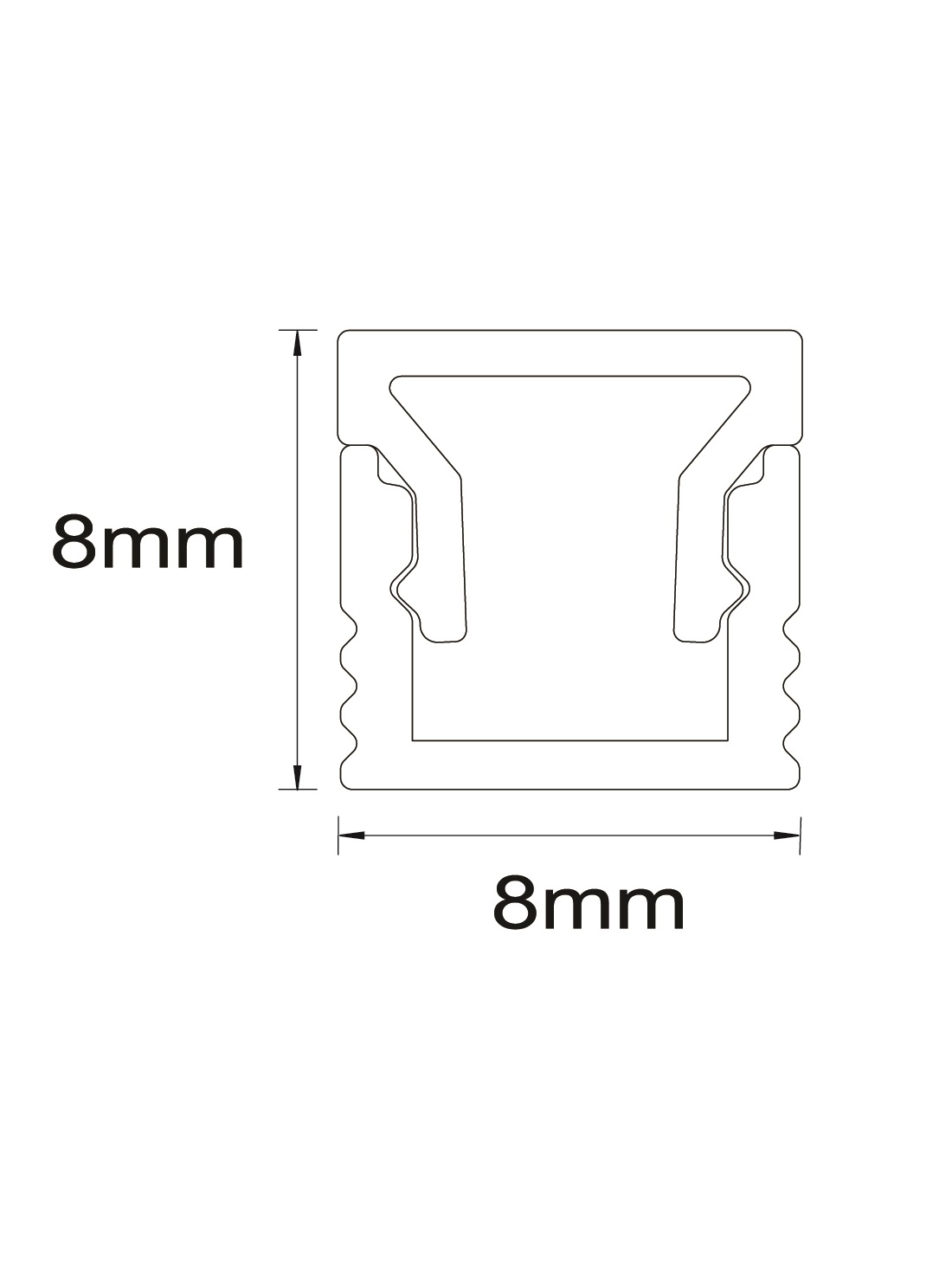

SKAB PROFILES Small 1CON 8x8mm

Specifications

Gear/driver Driver not included
Material Alu. + White diffusor
Weight (KG) 0,100 per meter
IP IP20
Beam Angle 120°
Max Length 6.000mm (2 pieces alu + 1 piece deffusor)
Min Length 50 mm
Power Supply Constant voltage 12V DC
Max Power 14,5W 1,21Amp - per meter
SMD leds 180 SMD LEDS per meter
CRI 90+

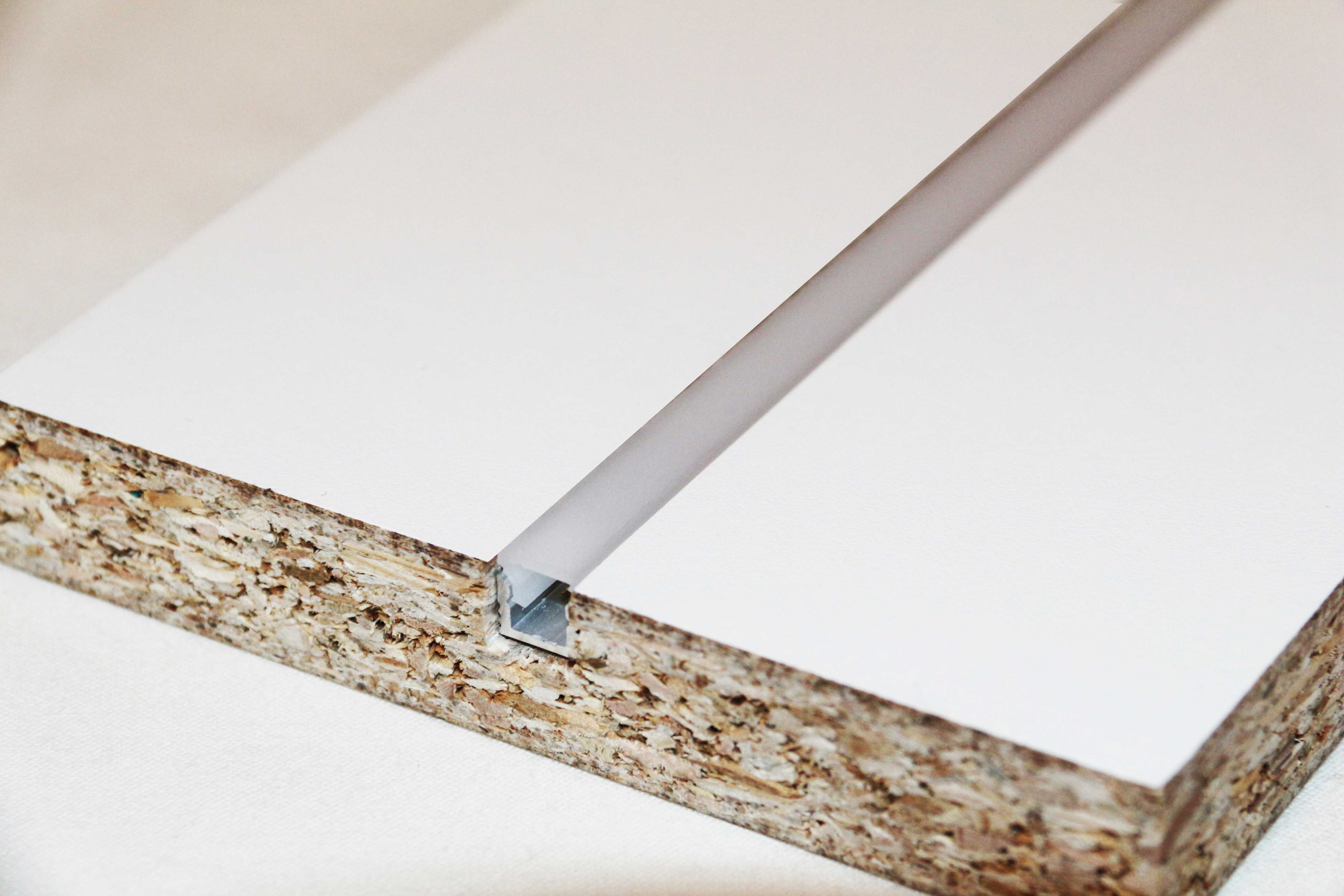

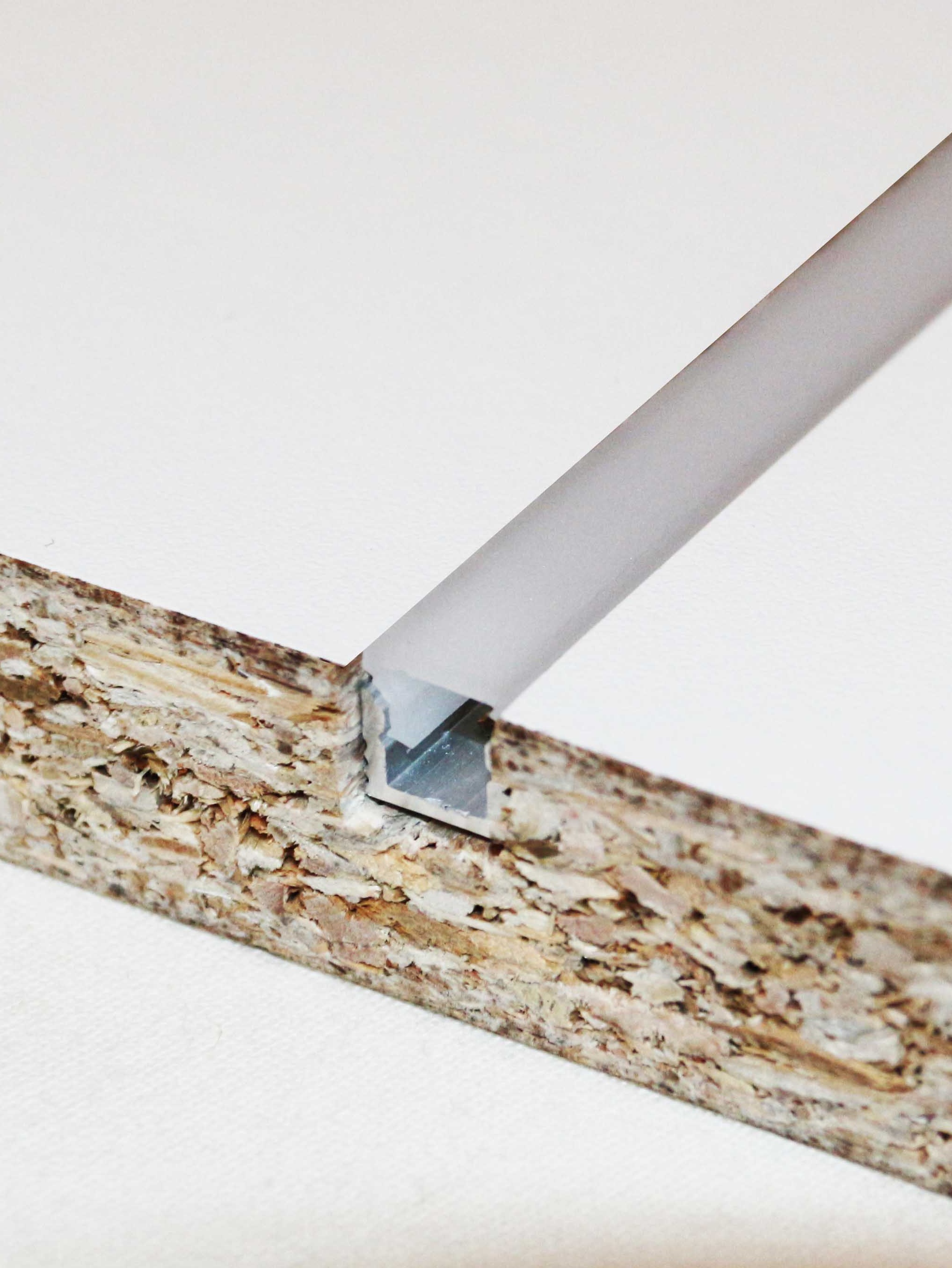

Cutout shape/size 8,1 mm With x 9mm deep
Option: Fixation clips set inox Article No.: SKAB FIXB INO XSET Fixation clips set white Article No.: SKAB FIXB WHI TSET Fixation clips set black Article No.: SKAB FIXB BLA CSET Fixation clips set any RAL Article No.: SKAB FIXB RAL XSET Excludes power cable (order separately). Dimmable (cfr. Accessories)
Special: Ral colour per meter with Article No. : SKAB SMPM RAL LACQ

Models

Article n° Description Color Lumenoutput LDT/PDF

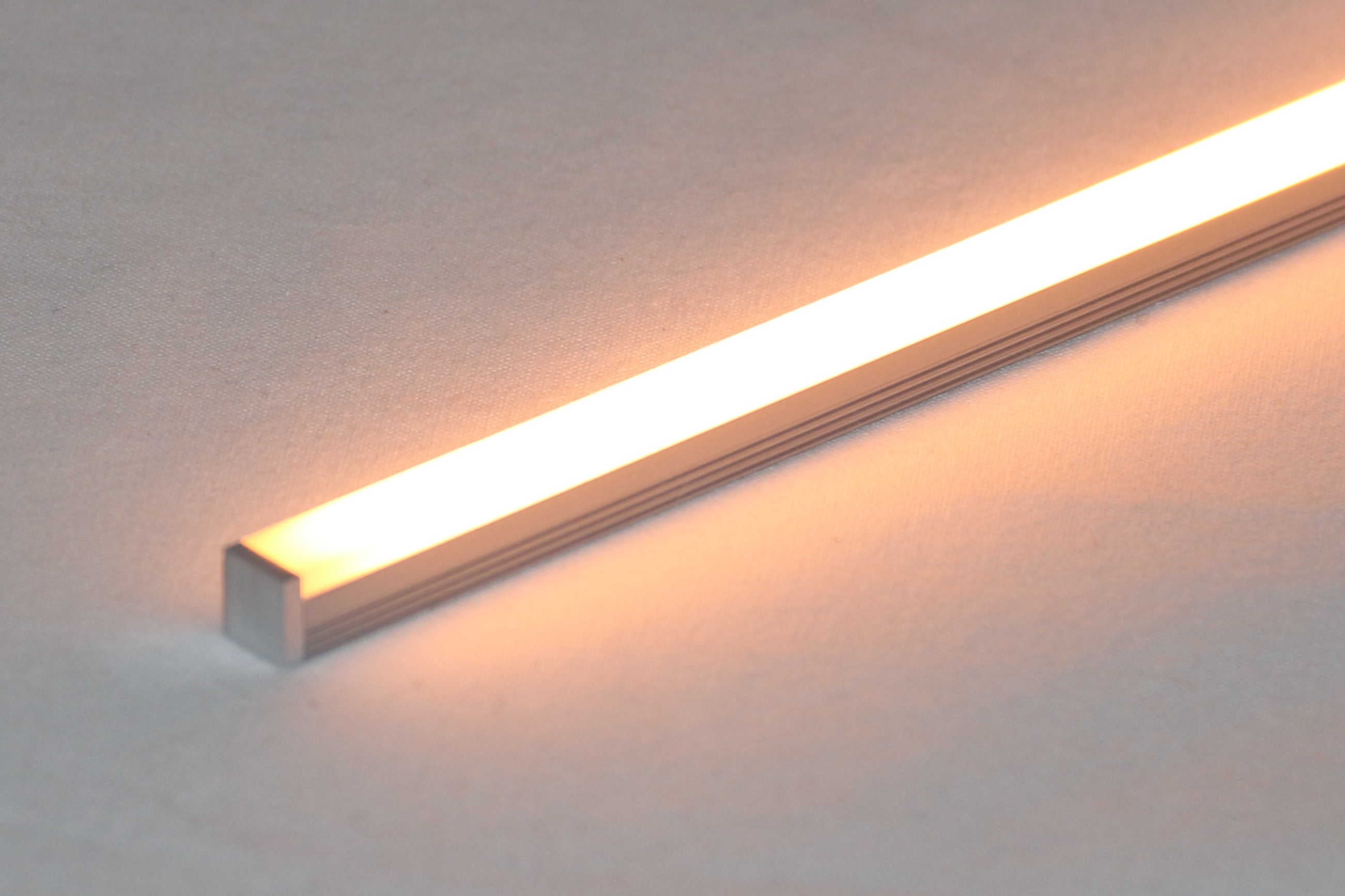

SKAB INPM SWW 1CON SKAB PROFILE INTERIOR SMALL 8MMx8MM PER METER SUPER WARM WHITE 1800K 1 CONNECTION ANODIZED 800 LUMEN PER METER

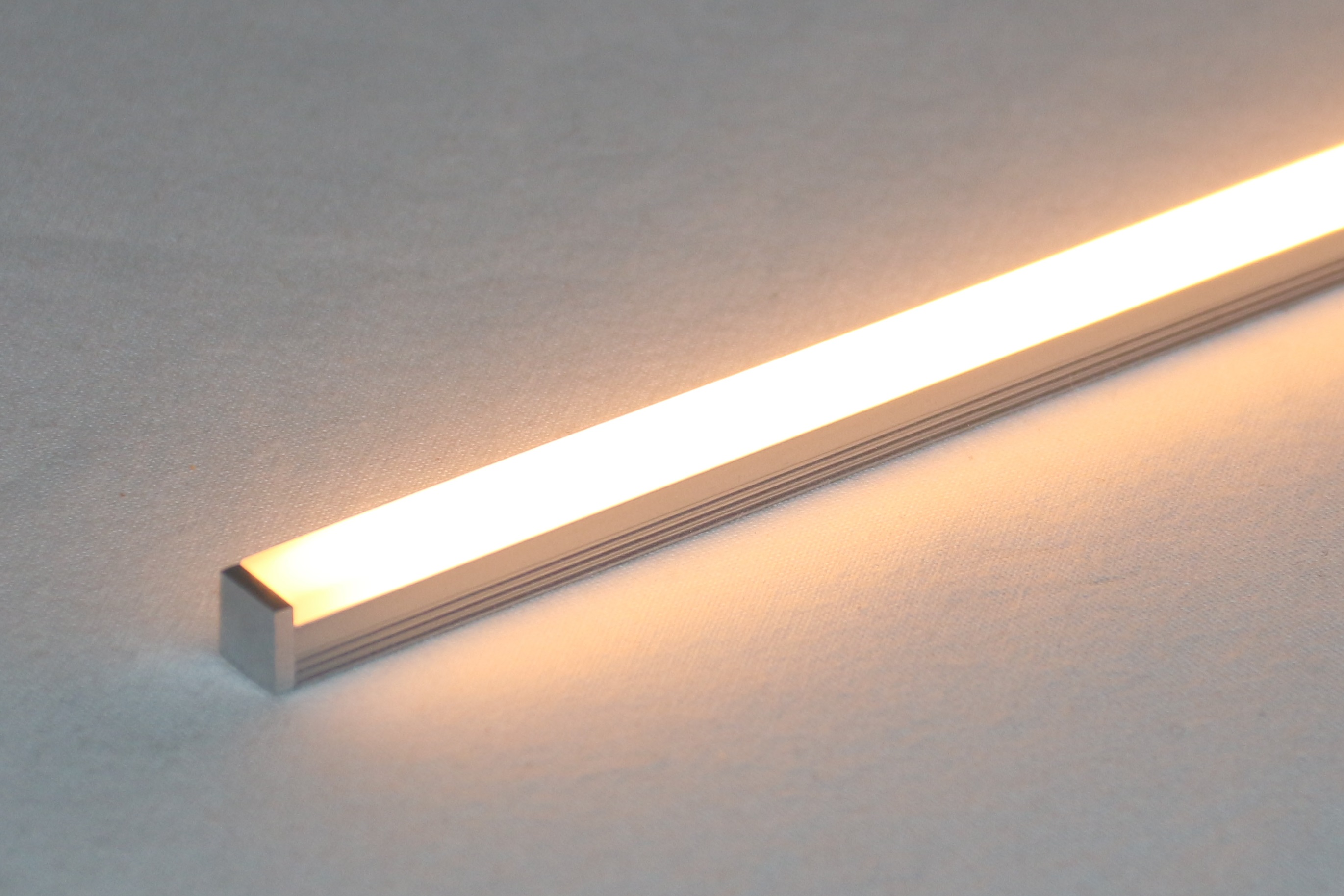

SKAB INPM VWW 1CON SKAB PROFILE INTERIOR SMALL 8MMx8MM PER METER VERY WARM WHITE 2200K 1 CONNECTION ANODIZED 900 LUMEN PER METER

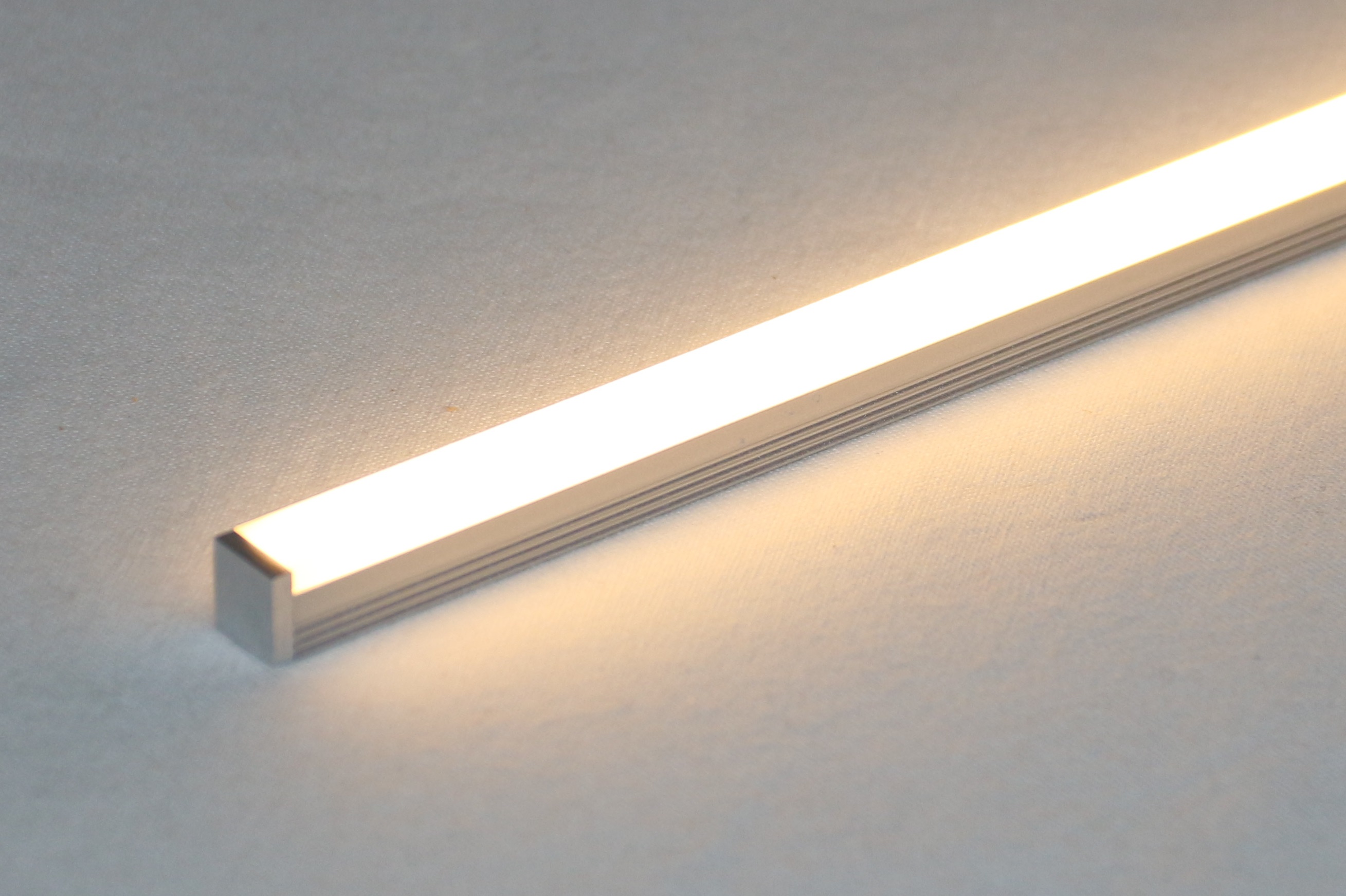

SKAB INPM WWW 1CON SKAB PROFILE INTERIOR SMALL 8MMx8MM PER METER WARM WHITE 2700K 1 CONNECTION ANODIZED 1000 LUMEN PER METER

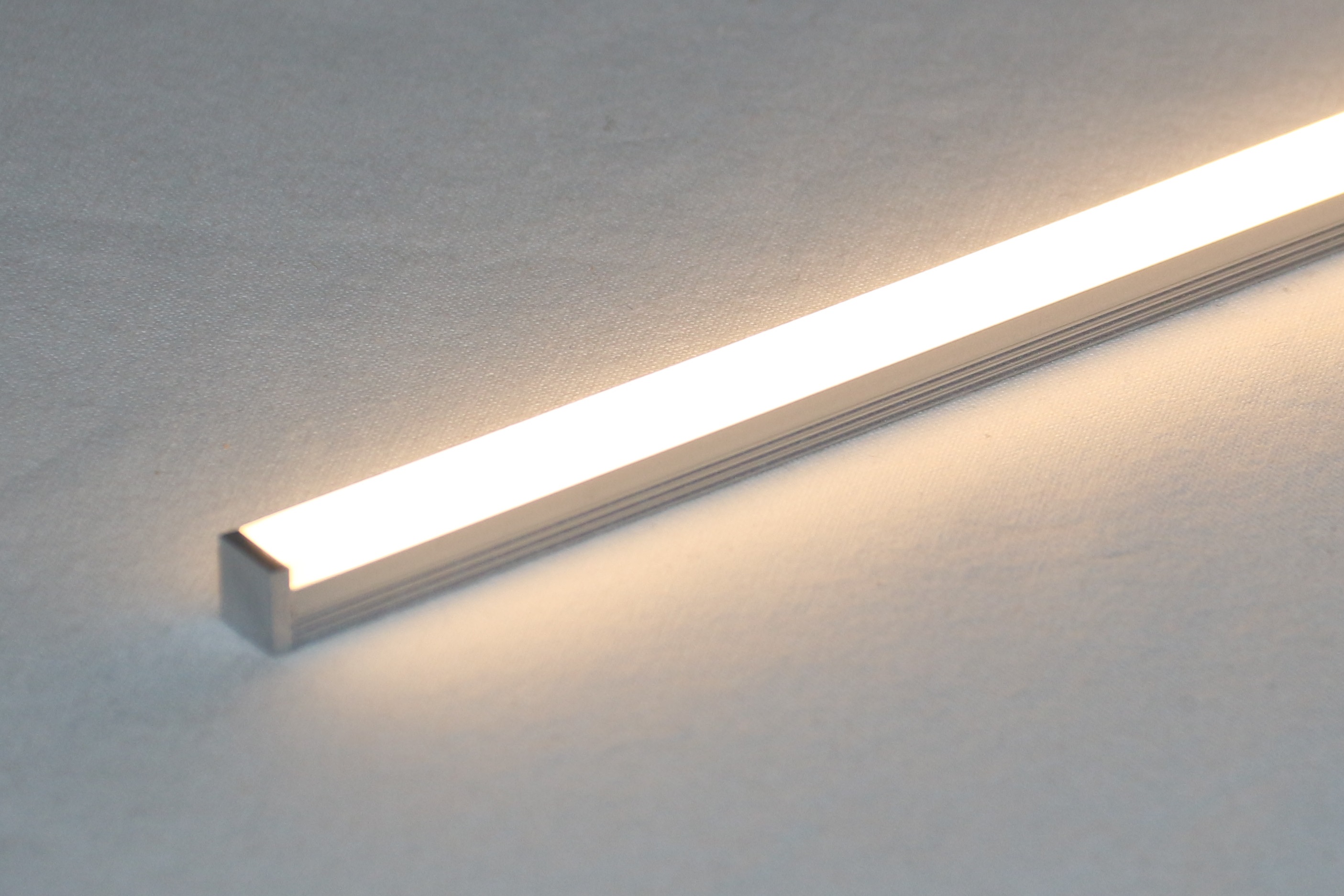

SKAB INPM WAW 1CON SKAB PROFILE INTERIOR SMALL 8MMx8MM PER METER WARM WHITE 3000K 1 CONNECTION ANODIZED 1100 LUMEN PER METER

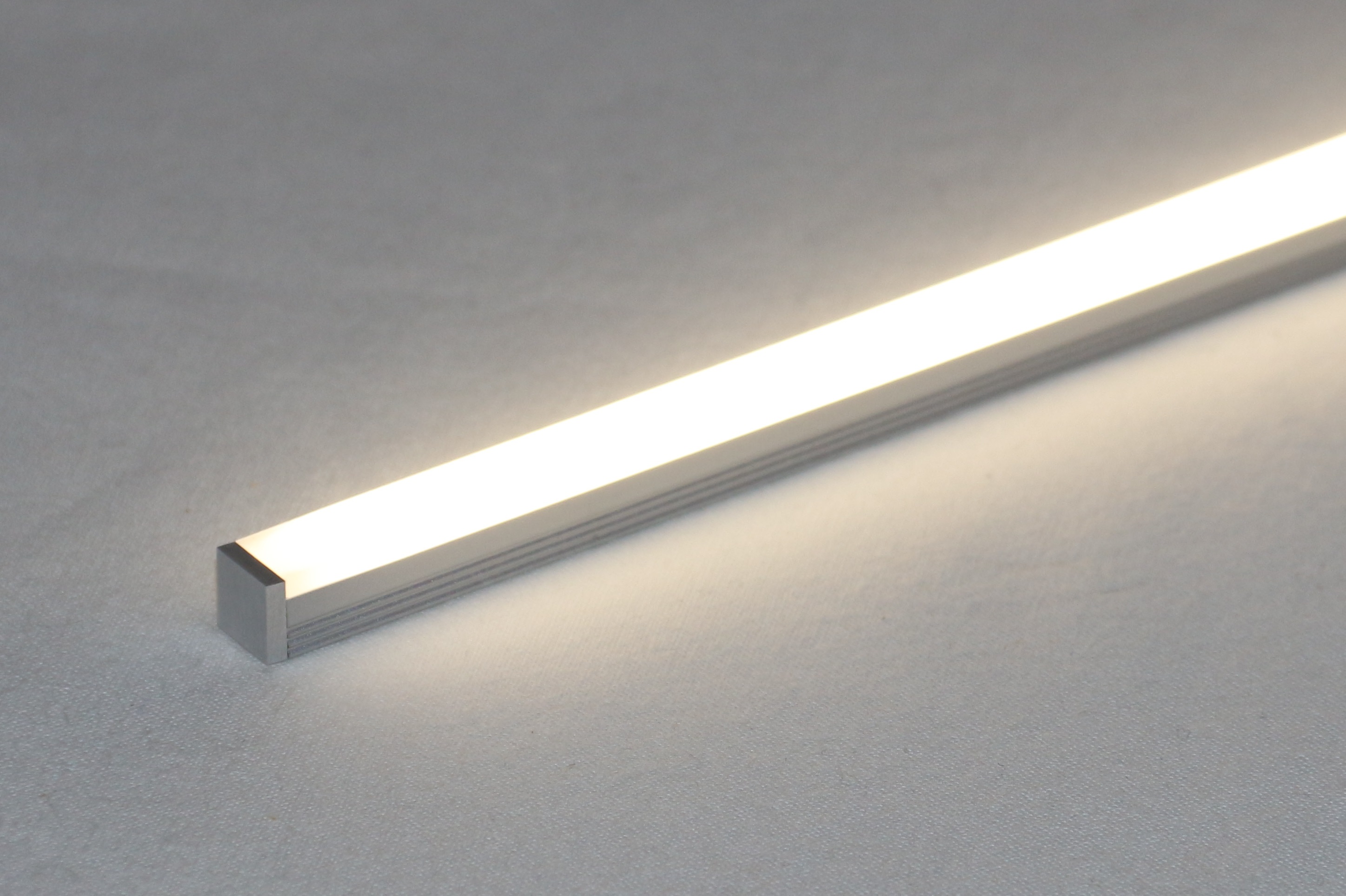

SKAB INPM NAW 1CON SKAB PROFILE INTERIOR SMALL 8MMx8MM PER METER NATURAL WHITE 4000K 1 CONNECTION ANODIZED 1220 LUMEN PER METER
